Processor Card
Removal
1. If you have not already done so, remove the covers as described in “Covers” on
page 6-3.
2. Remove the I/O planar cover as described on page 6-8.
Attention: Make sure the power cord is unplugged and the power (Power LED)
is OFF before removing the CPU card.
3. Remove the power cable from the CPU card by squeezing the tabs.

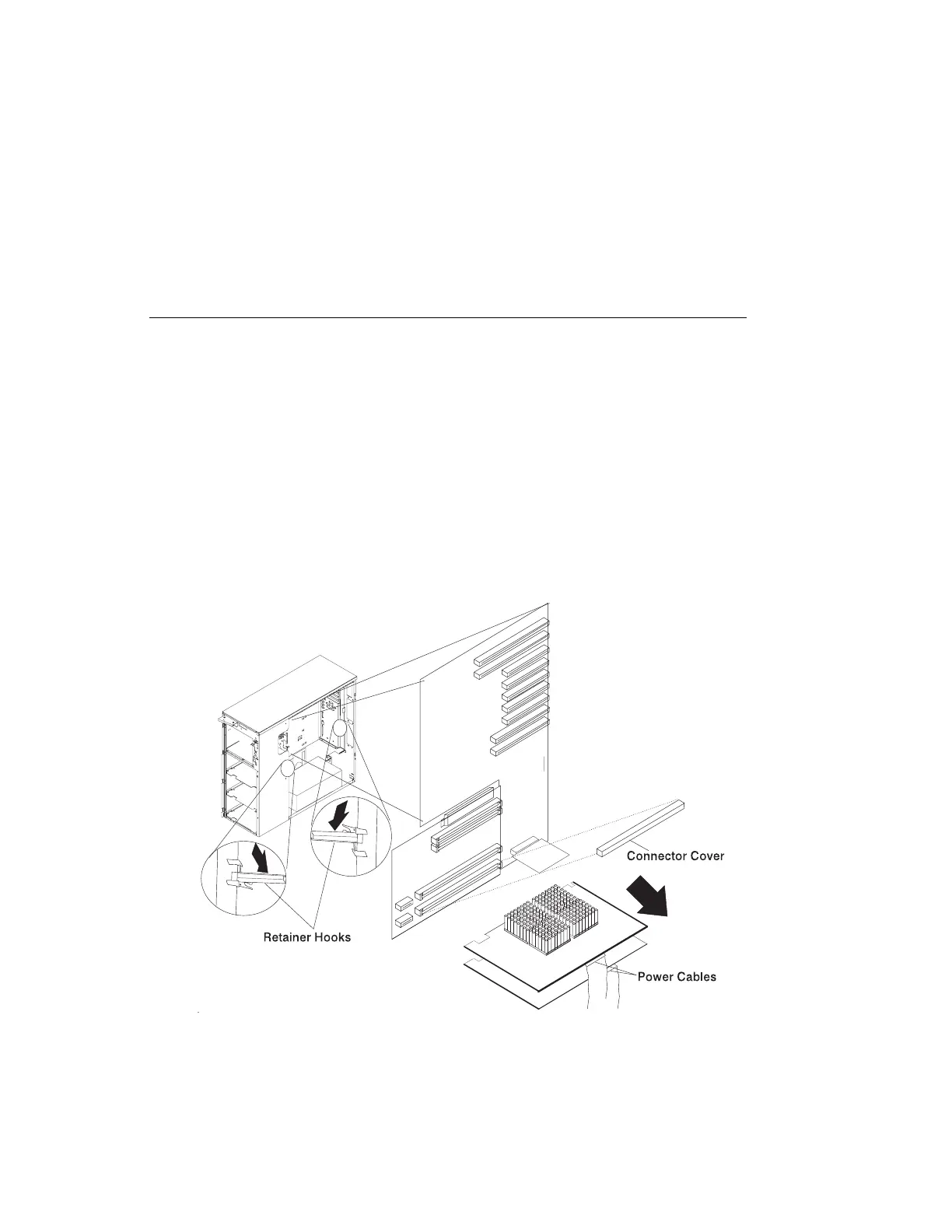

4. The card is secured in place with card retainer hooks, one on each end of the
card. Open the card retainer hooks and remove the card.
Chapter 6. Removal and Replacement Procedures 6-35
