Service Processor
Removal
1. If you have not already done so, remove the covers as described in “Covers” on
page 6-3.
2. Remove the I/O planar cover as described on page 6-8.
Attention: Make sure the power cord is unplugged and the power LED is OFF
before removing the service processor.

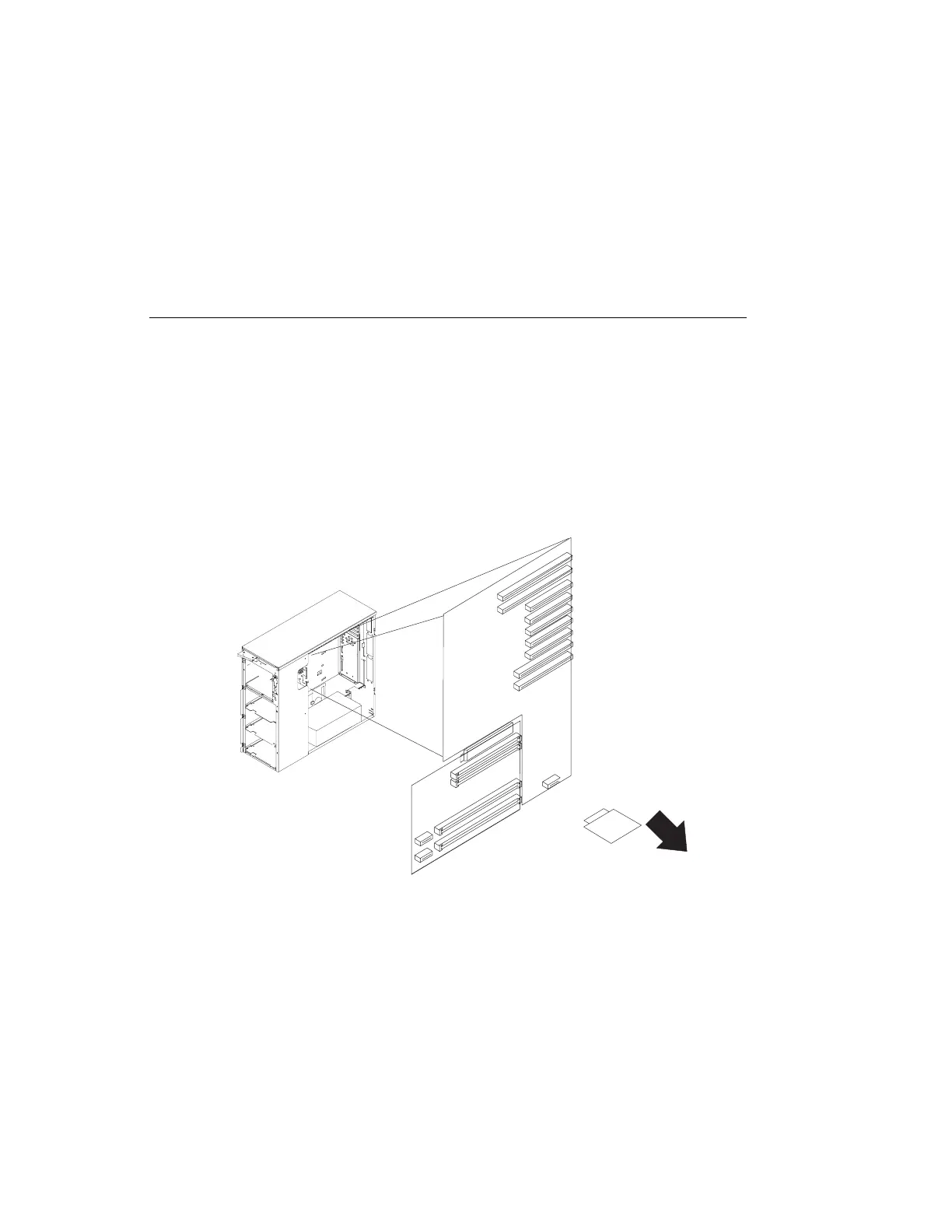

3. Remove the service processor.
Replacement
To replace the service processor, perform the removal steps in the reverse order.
Chapter 6. Removal and Replacement Procedures 6-37
