9. Remove the side cover:

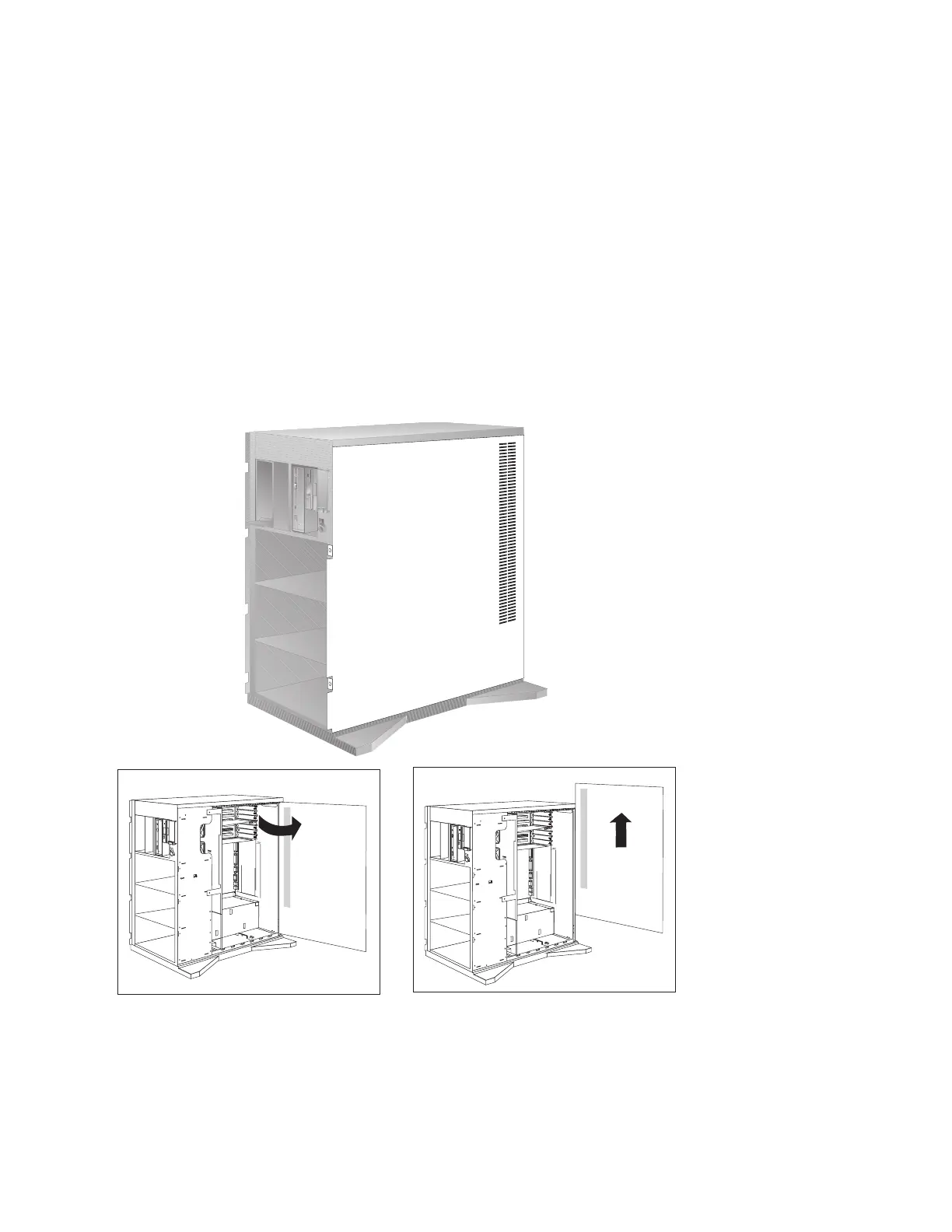

a. Open the side cover to a 90 degree angle.
b. Remove the cover by carefully lifting it up and off the hinges. Store it in a
safe place.
10. Remove the I/O Planar cover:
Attention If your system has the SSA bulkhead cable installed, make sure that
you do not damage the cable as you remove the I/O planar cover.
a. Loosen the three screws (2 turns) on the I/O planar cover and unlatch the
cover.
6-8 Service Guide
