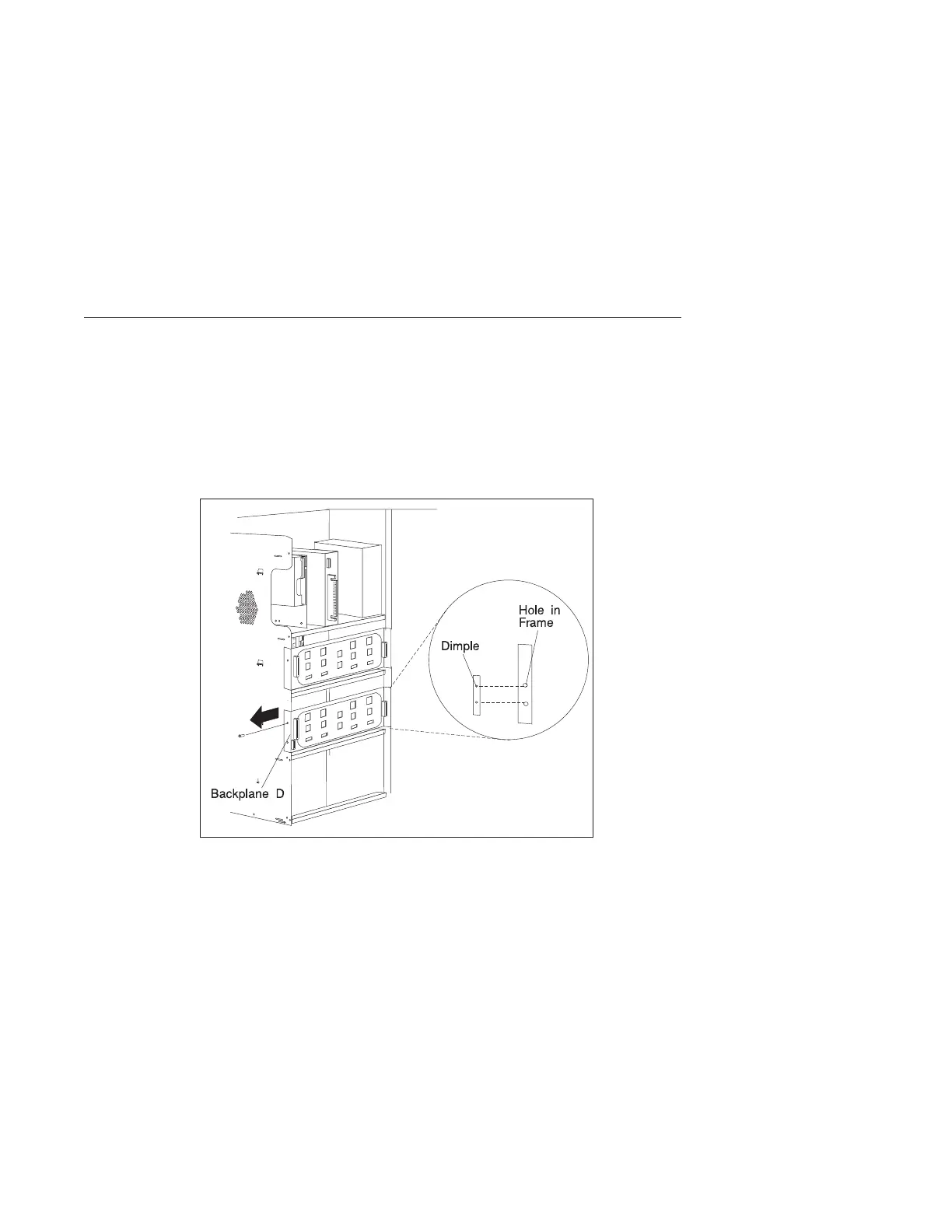

Backplane
Removal
1. If you have not already done so, remove the covers as described in “Covers” on
page 6-3.
2. Remove the screw from the backplane.
3. Slide the backplane out to gain cable access.
4. Disconnect the SCSI cable, EPOW cable, and power supply cable from the
backplane.
5. Remove the backplane.
6-20 Service Guide
