7. Push the EIA assembly slightly toward the rear of the server to fix the EIA
assembly on the server.
8. Angle the cable cover as shown in the following illustration and slide the
cable arm towards the front of the server.
EIA assembly
Alignment pin

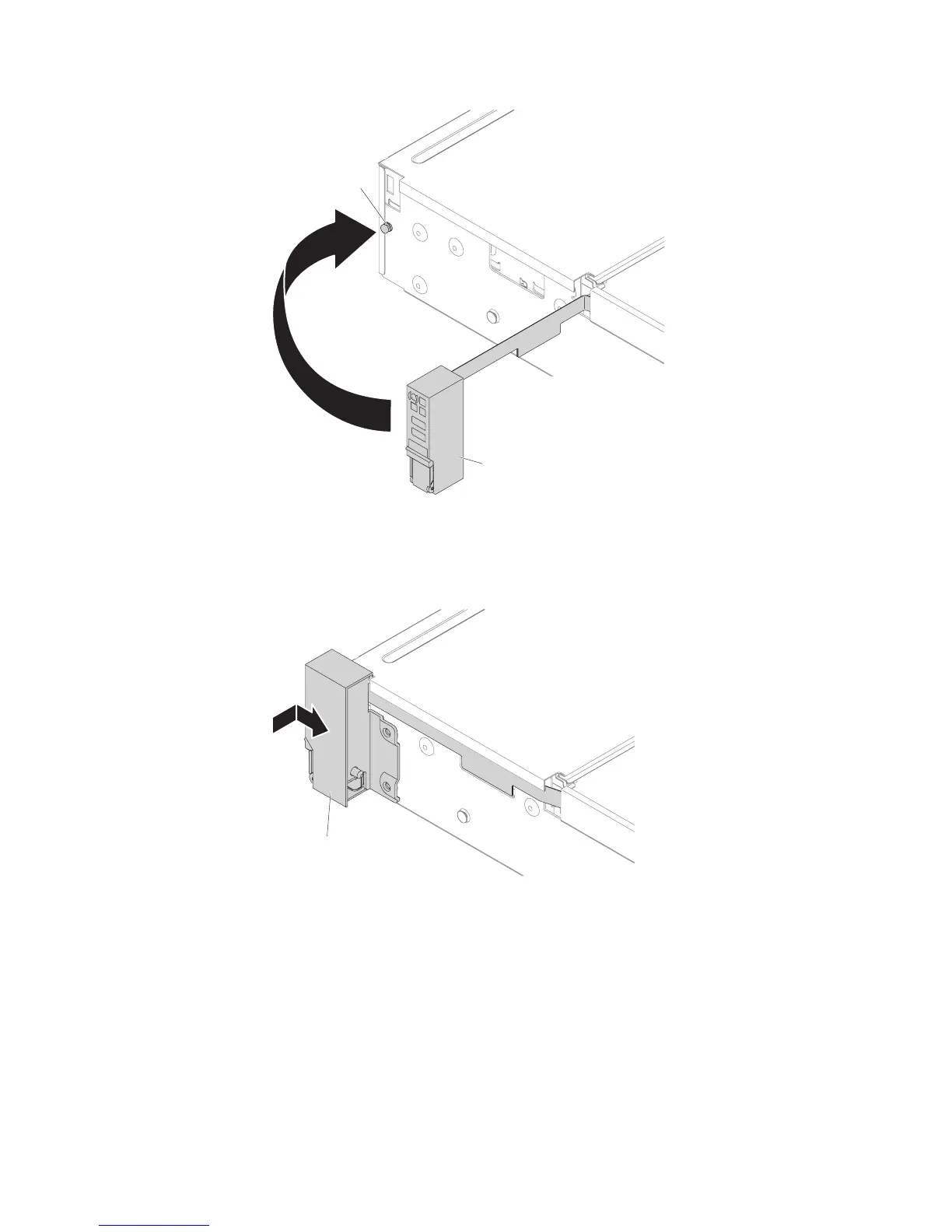

Figure 168. EIA assembly alignment
EIA assembly
Figure 169. EIA assembly installation
Chapter 5. Removing and replacing components 223
