64

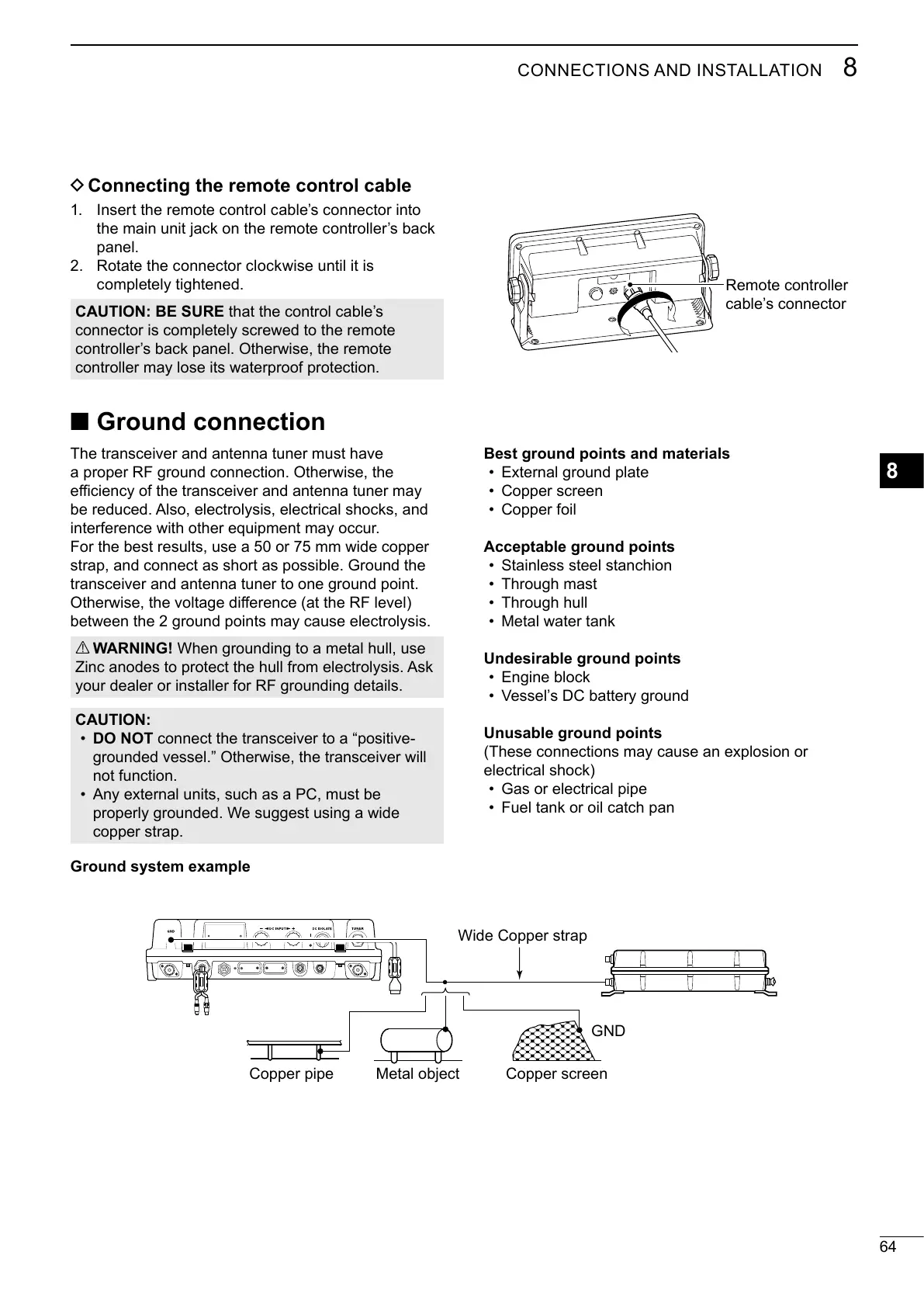

CONNECTIONS AND INSTALLATION
8
8
D Connecting the remote control cable
Insert the remote control cable’s connector into
the main unit jack on the remote controller’s back
Rotate the connector clockwise until it is
CAUTION: BE SURE that the control cable’s
connector is completely screwed to the remote
Remote controller
cable’s connector
■ Ground connection
For the best results, use a 50 or 75 mm wide copper
R WARNING! When grounding to a metal hull, use
CAUTION:
• DO NOT
• Any external units, such as a PC, must be
Ground system example
Best ground points and materials
• External ground plate
• Copper screen
• Copper foil
Acceptable ground points
• Stainless steel stanchion
• Through mast
• Through hull
• Metal water tank
Undesirable ground points
• Engine block
• Vessel’s DC battery ground
Unusable ground points
(These connections may cause an explosion or
electrical shock)
• Gas or electrical pipe
• Fuel tank or oil catch pan
Copper pipe Metal object Copper screen
Wide Copper strap
GND
