Icom IC-M804 - D Antenna Tuner; D Microphone; D Others; Options

74

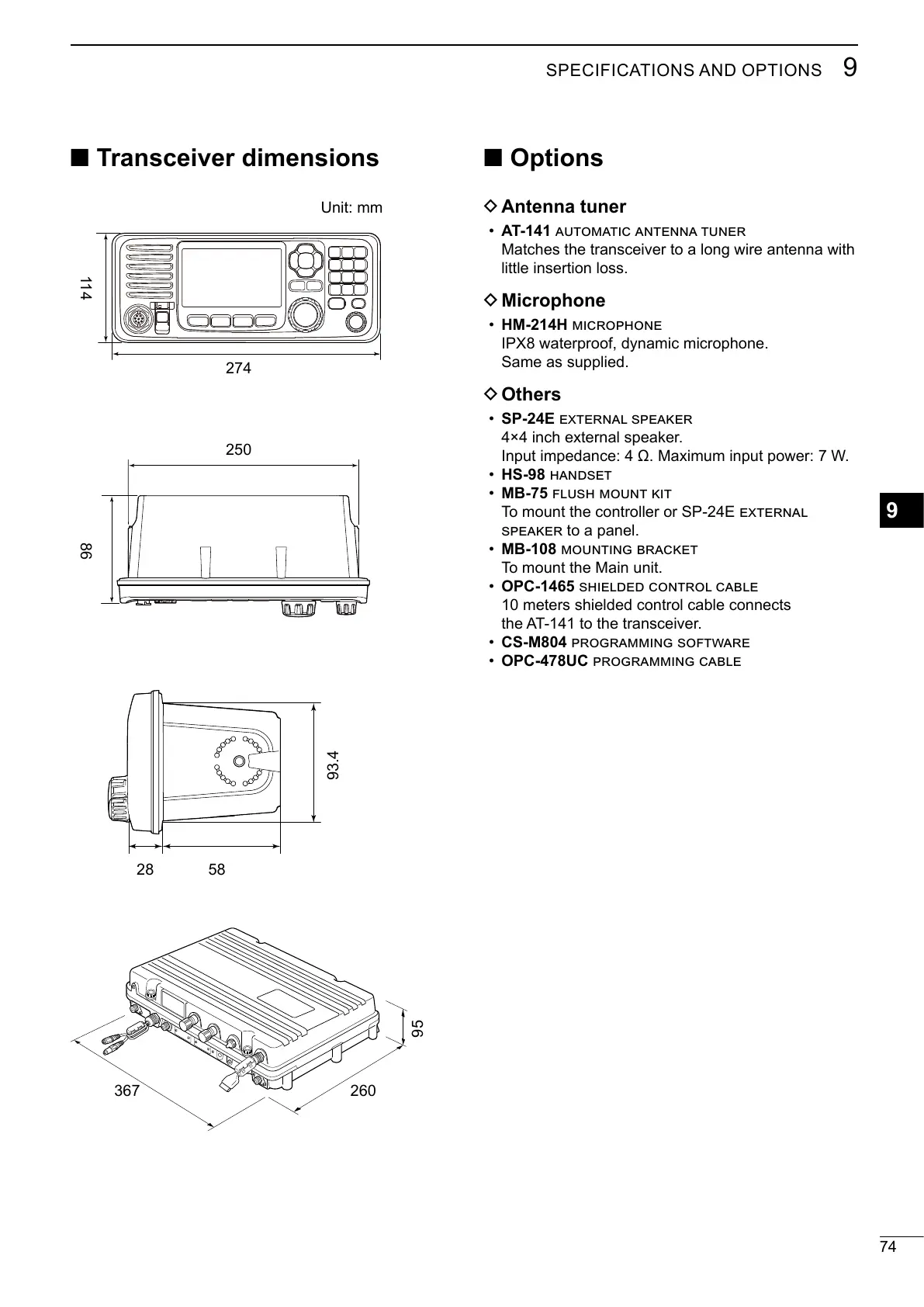

SPECIFICATIONS AND OPTIONS
9
9
■ Options
D Antenna tuner
• AT-141 
Matches the transceiver to a long wire antenna with
little insertion loss.
D Microphone
• HM-214H 
IPX8 waterproof, dynamic microphone.
Same as supplied.
D Others
• SP-24E 
4×4 inch external speaker.

• HS-98 
• MB-75 
To mount the controller or SP-24E 
 to a panel.
• MB-108 
To mount the Main unit.
• OPC-1465 
10 meters shielded control cable connects
the AT-141 to the transceiver.
• CS-M804 
• OPC-478UC 
■ Transceiver dimensions
274
114
250
86
5828
93.4
260367
95
Unit: mm
