ICS Tunnel Master Jr User Manual

System Hardware and Installation Tunnel Master

Jr. User Manual—Version 3.0
24 January 2016
TIRE SWITCH WIRING

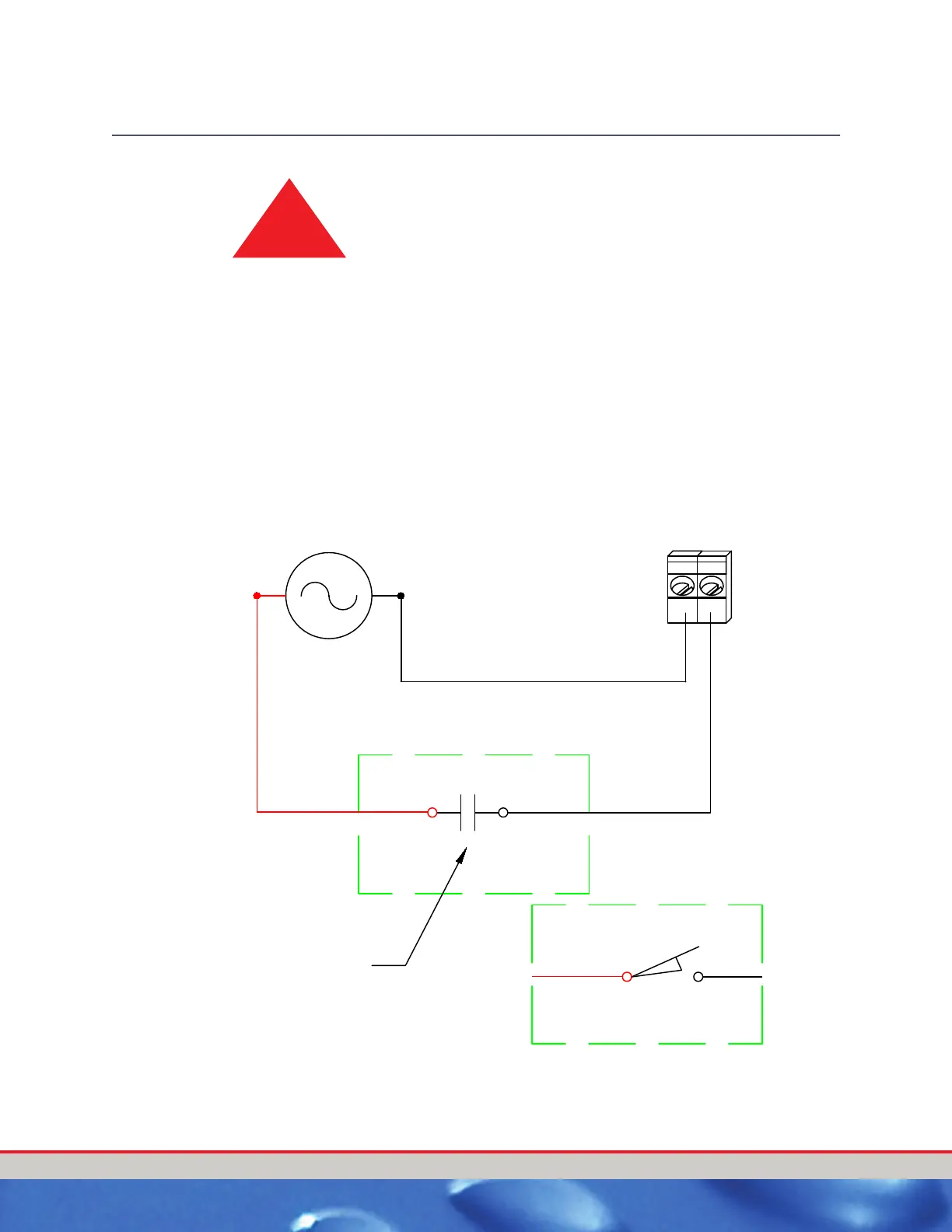

The following diagram shows how to wire the Tire switch (tire position
detection) into the Relay Box.
Tire Switch Wiring
Figure 6. Tire Switch Wiring
!
IMPORTANT: This circuit is used if the customer has
purchased a tire position switch from the equipment
vendor. The switch enables the Controller software to turn
equipment on and off as each of the vehicle's tires pass that
piece of equipment. In order for
this to work properly, the
tire switch should be located in line with the gate switch.
24 VAC SUPPLY
(BY OTHERS)
TMJ RELAY BOX TERMINAL STRIP (TOP)
COMMON
NORMALLY
OPEN
ELECTRIC TIRE
POSITION SENSING
DEVICE CONTACTS
LN
TIRE - TIRE +
Alternate symbol for N.O. Switch
