ICS Tunnel Master Jr User Manual

User Manual—Version 3.0 Tunnel Master

Jr. System Hardware and Installation
January 2016 27
 A roller locator switch needs to be wired into Input 9, and installed on the
conveyor. This switch should be positioned so that as soon as a roller
passes the switch it will be in a position where it is safe for the roller fork
s
to come up.
 Turn the roller locator function on in Wash Settings.
The following diagram shows how to wire the Roller Locator into the Relay
Box.

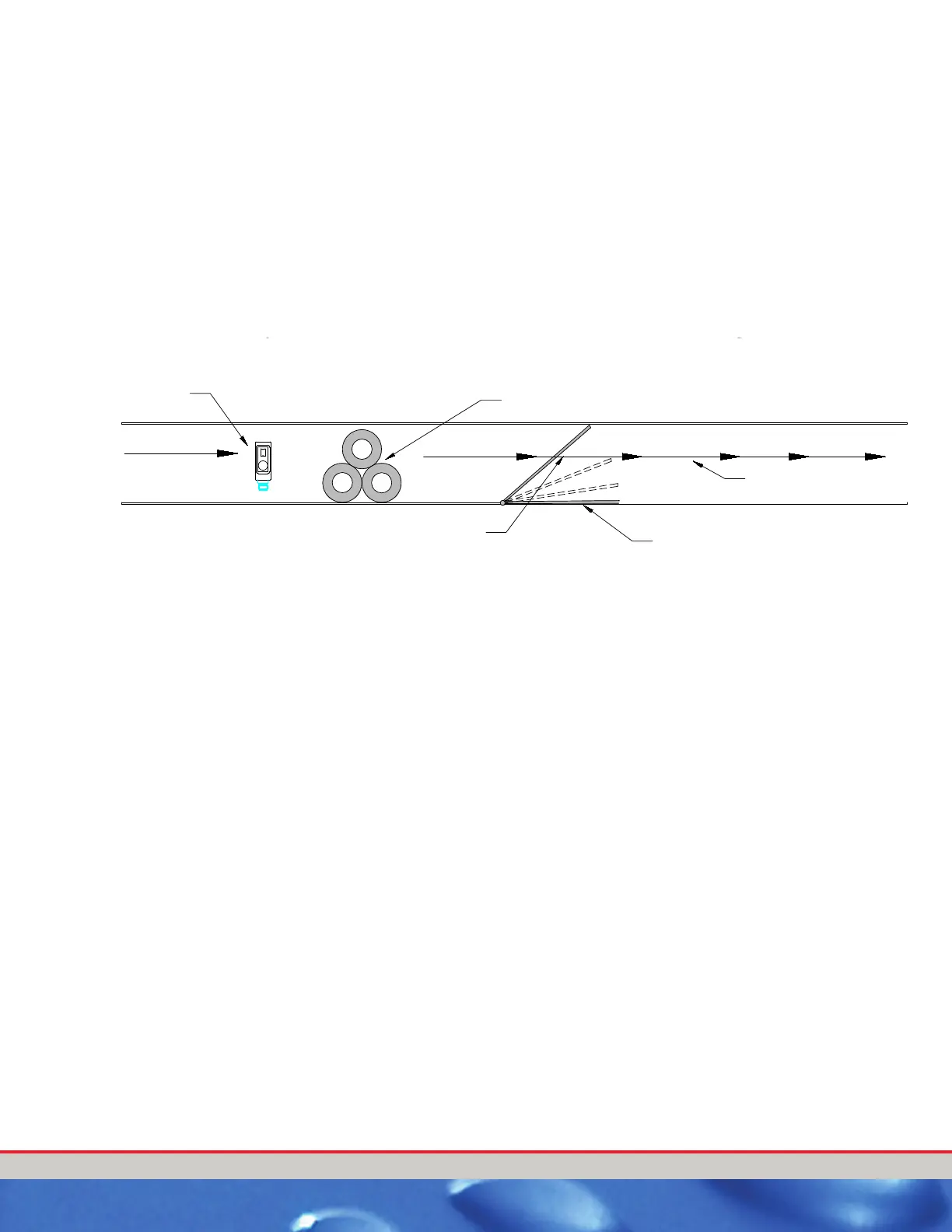

Conveyor Roller Locator Cross Section Diagram
Figure 8. Roller Locator Cross Section Diagram
Roller Locator Device
Conveyor Surface
Roller forks in the UP position
Conveyor direction
Roller
Roller forks in the DOWN position
yg
