INPUT WIRING SUMMARY

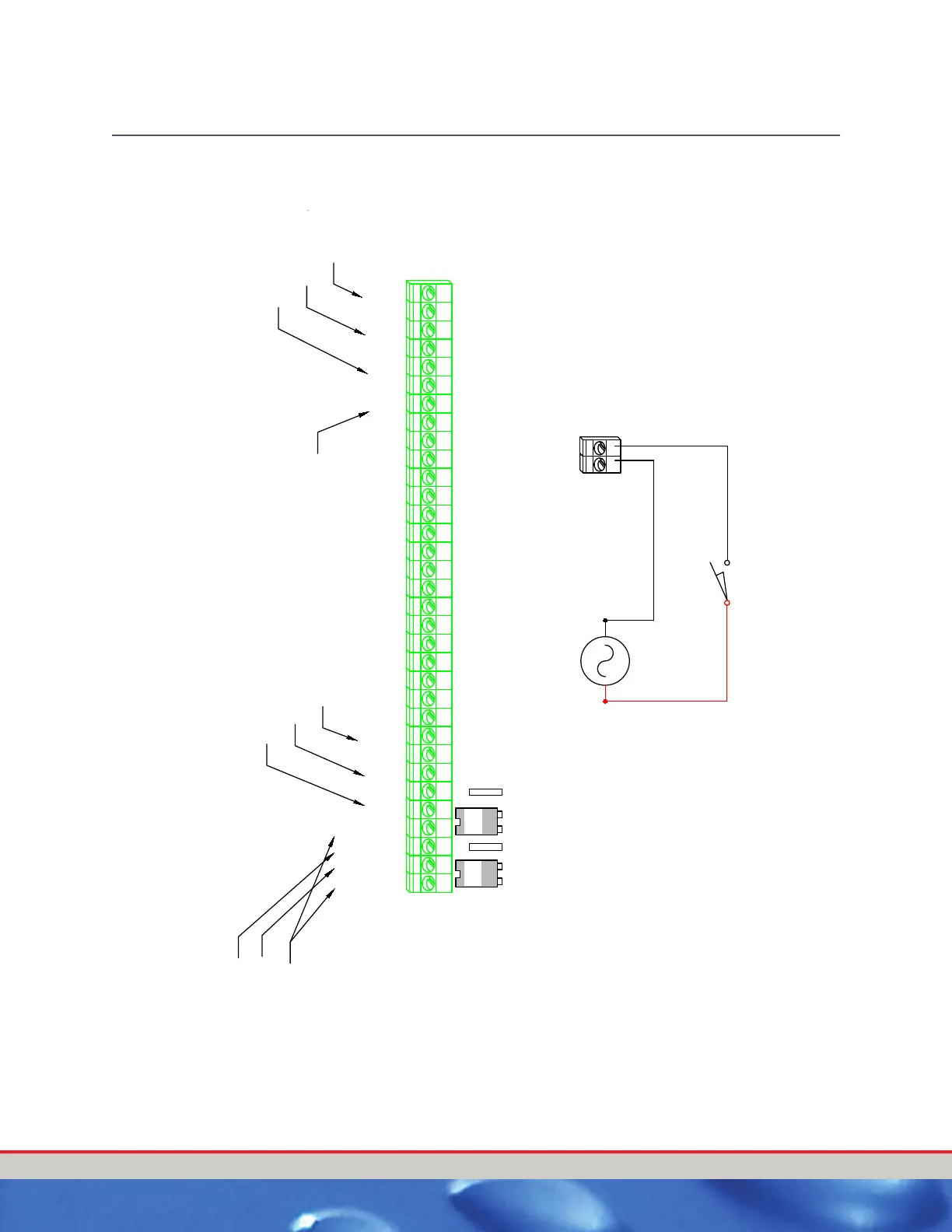

Figure 12. Inputs
PROX PWR
CLK SRCE
CLK SINK
PROX GND
GATE +
GATE -
TIRE +
TIRE -
IN 1 +
IN 1 -
IN 2 +
IN 2 -
IN 3 +
IN 3 -
IN 4 +
IN 4 -
PANIC +
PANIC -
IN 5 +
IN 5 -
IN 6 +
IN 6 -
IN 7 +
IN 7 -
IN 8 +
IN 8 -
IN 9 +
IN 9 -
IN 10 +
IN 10 -
IN 11 +
IN 11 -
IN 12 +
IN 12 -
Extern
a
Anti-Collisi
o
Entrance Mgt.
Roller locator switch
Panic input
Tire detect input
Gate input
w
itch power
C
lock source
Clock sink
TMJ Input Designations
24 VAC SUPPLY
(BY OTHERS
)
LN
Input -
Input +
*All input devices must complete a 24VAC circuit to the input. A contact
closure alone will NOT toggle the input
.
Please refer to the example circuit below.
(Example ;Gate, Anti Collision, Roller detect, etc.)
SINK
SOURCE
JP2
JP1
SINK
SOURCE
