System Hardware and Installation Tunnel Master
Jr. User Manual—Version 3.0
26 January 2016
Entrance Management System Wiring
Figure 7. Entrance Management Overview and Wiring Diagram
ROLLER LOCATOR WIRING
When a roller locator is used, the Tunnel Master
Jr. will wait to fire a roller
until the trailing edge of the signal is detected from a roller locator. There are
various devices available to detect the roller and because the Tunnel
Master
Jr. reads the trailing edge of the signal either a normally open or
normally closed switch can be used.
To set this up two things need to be done:

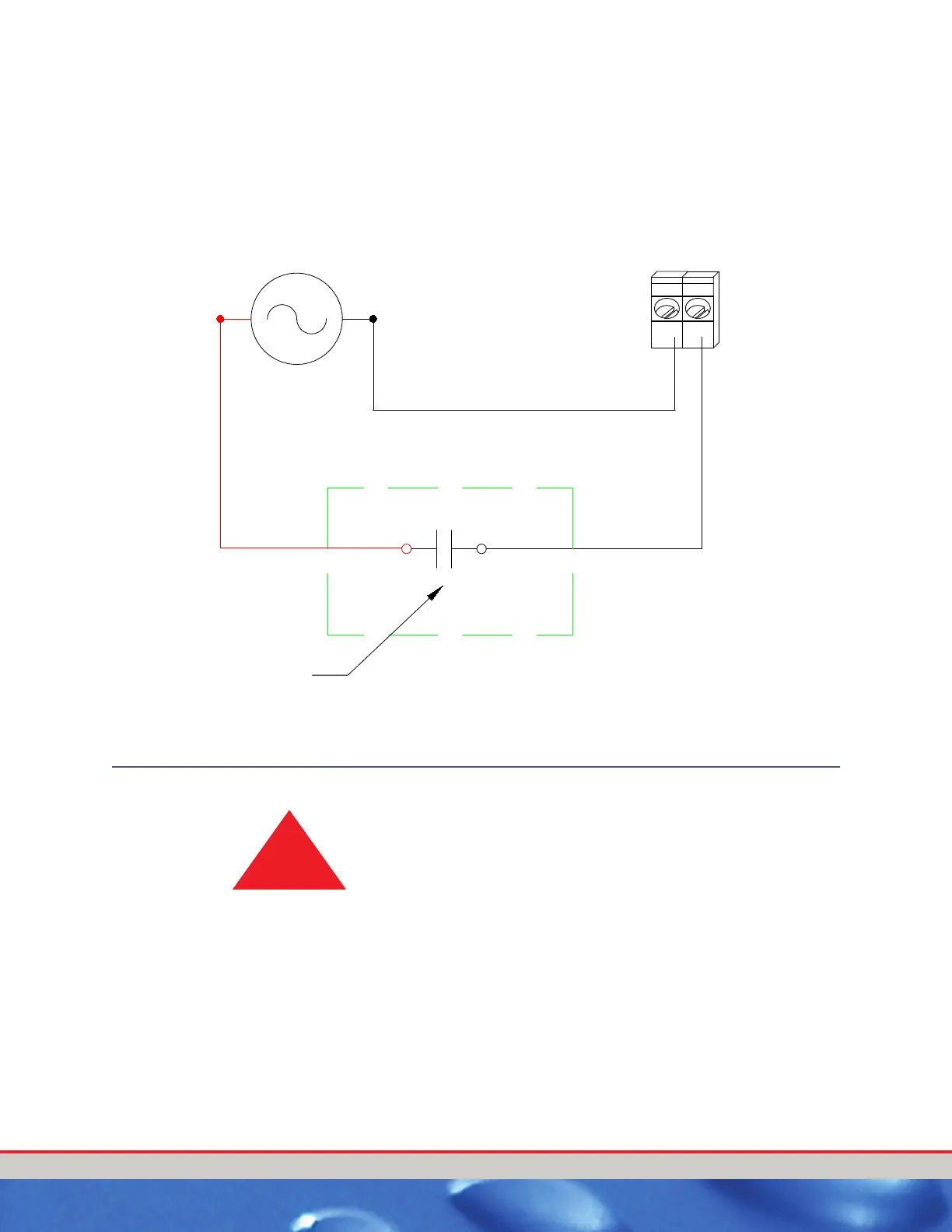

24 VAC SUPPLY
(BY OTHERS)
COMMON
NORMALLY
OPEN
TREADLE SWITCH
N.O. CONTACTS
LN
TMJ RELAY BOX TERMINAL STRIP (TOP)
Input 10 -
Input 10 +
!
IMPORTANT: You can add a roller locator to the Tunnel
Master
Jr. to keep your rollers from jamming your
conveyor. In order to do this, a roller locator switch must be
installed on your conveyor to signal the
presence of a roller.
