User Manual—Version 3.0 Tunnel Master



Jr. System Hardware and Installation

January 2016 21

Pulse/Proximity Switch Wiring

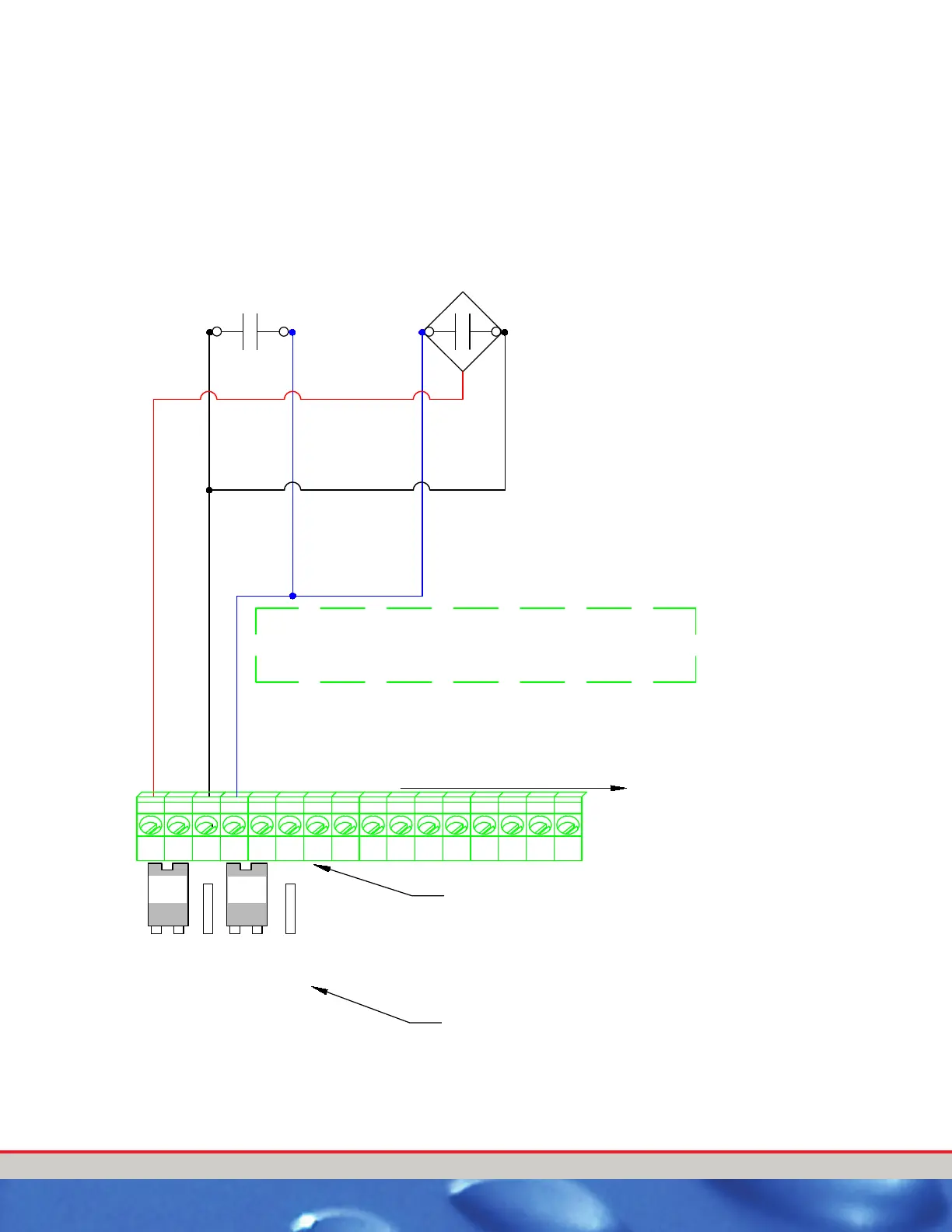

Figure 4. Pulse/Proximity Switch Wiring

PROX PWR

CLK SRCE

CLK SINK

PROX GND

GATE +

GATE -

TIRE +

TIRE -

PANIC +

PANIC -

Terminals not used in this diagram

"Used when connecting a standard

"Push Button" entry box.

2-Wire pulse

switch with

N.O. contact

3-Wire (NPN)

Proximity

switch - Sinking

Terminal strip on top of relay board

SINK

SOURCE

JP2

JP1

SINK

SOURCE

Refer to Jumper settings

Default Chapter3
