User Manual—Version 3.0 Tunnel Master



Jr. System Hardware and Installation

January 2016 35

Push Button Wiring 1 Row 8 Columns

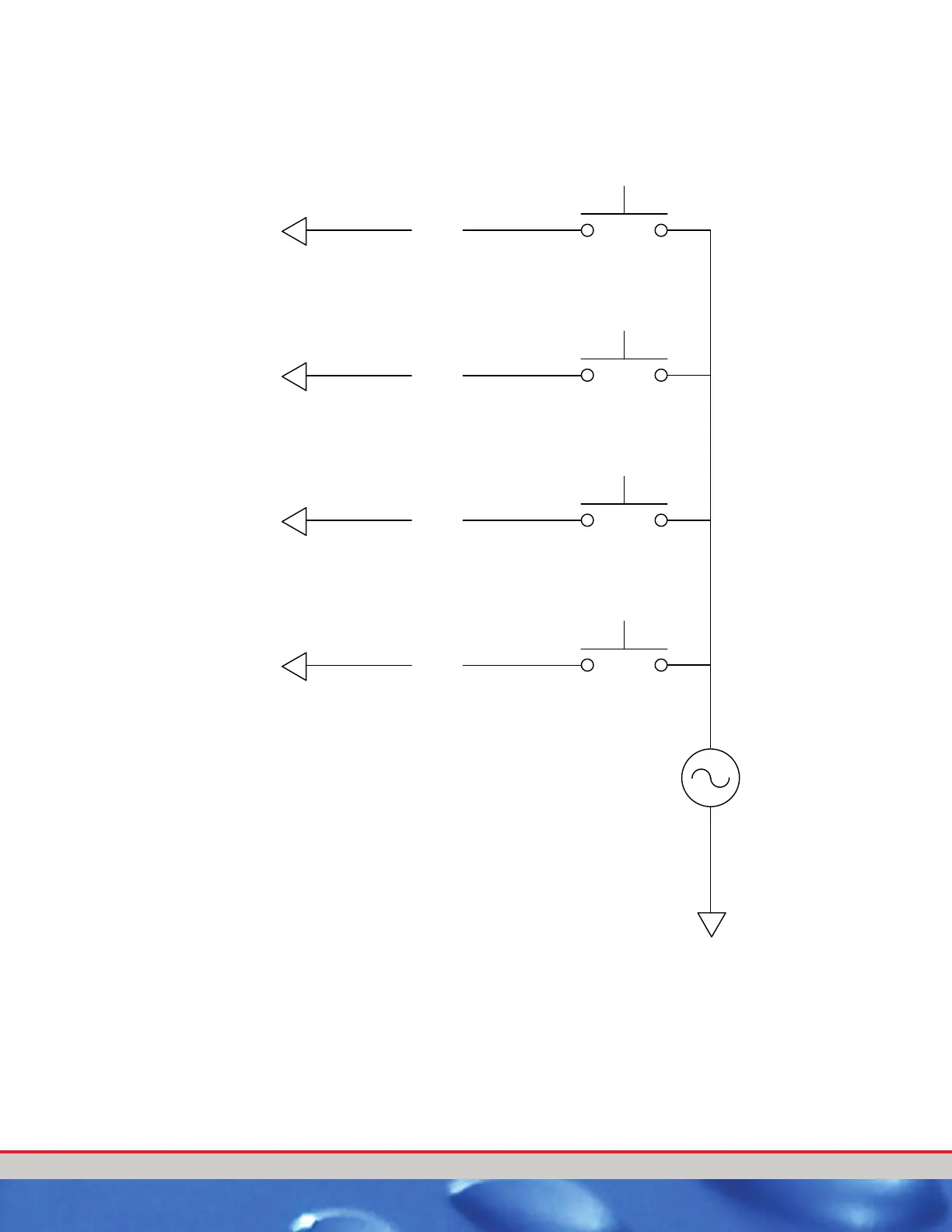

Figure 13. Push Button Wiring 1 Row 8 Columns

Input 1

PB 1

Service 1

Input 2

PB 2

Service 2

Input 3

PB 3

Service 3

Input 8

PB 4

All Clear

Inputs 1-8

Common

24VAC

Default Chapter3
