User Manual—Version 3.0 Tunnel Master



Jr. Communication and Keypad Installation

January 2016 77

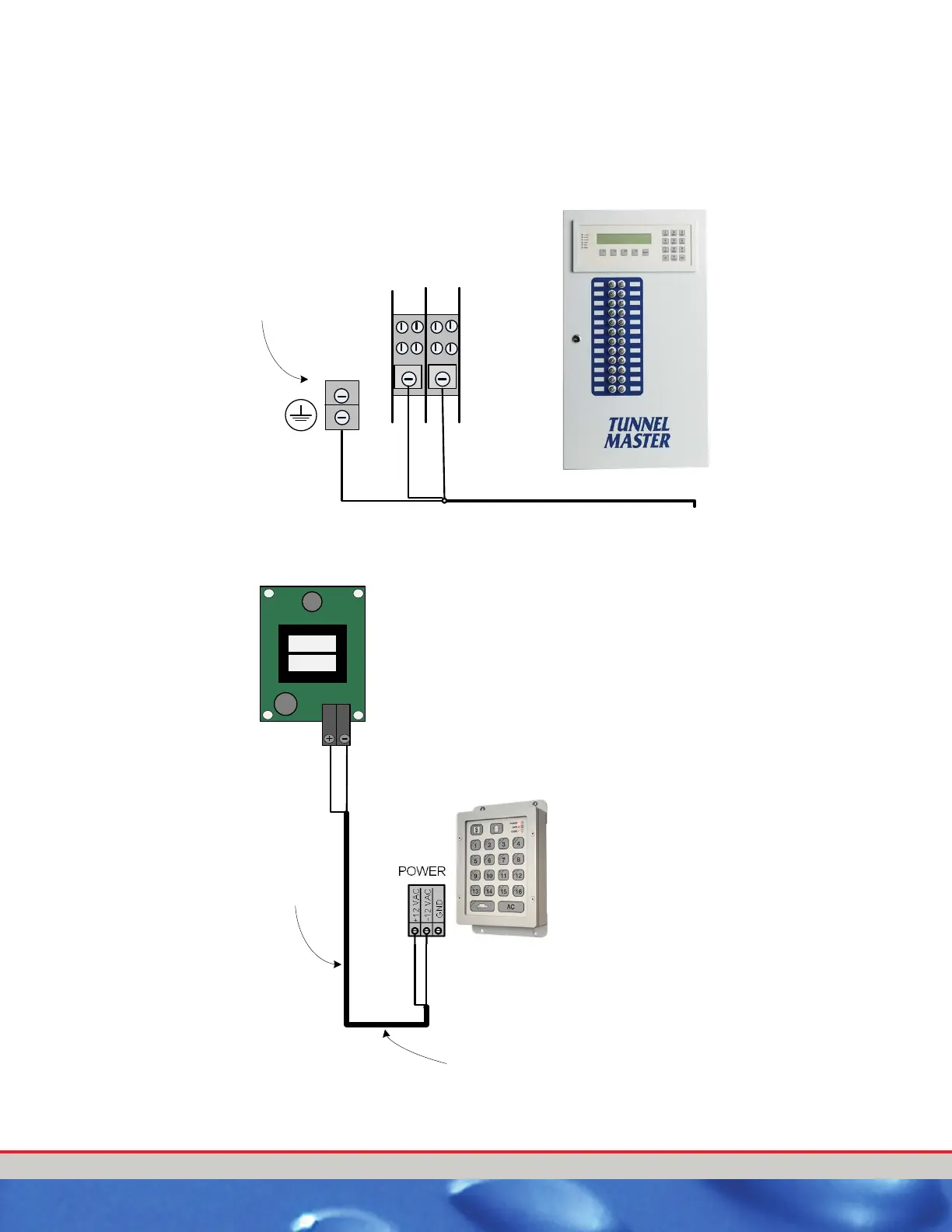

Figure 21. AC Power Terminations

Tunnel Master Jr. AC Power Terminations

GROUND

LUG

120 VAC FROM

POWER DISTRIBUTION

PANEL – 14/3

SHIELDED WIRE “E”

+12 VAC

-12 VAC

GND

POWER

BLACK

WHITE

SHIELD DRAIN NOT

TERMINATED

TMJ

CONTROLLER

KEYPAD

ELECTRICIAN

SUPPLIED 18/2

SHIELDED

SPARE

12 VAC

LINE

NEUTRAL

GROUND

SUPPLY FOR TMJ KEYPAD

INSIDE TMJ RELAY BOX

ELECTRICIAN

SUPPLIED 14/3

SHIELDED
