ENTRANCE KEYPAD FUNCTIONS
NOTE: In order to utilize the full functionality of the Entrance Keypad,
Tunnel Master

Jr. it is very important that the elec trician adhere to
the wiring instructions provided with the Relay Box.

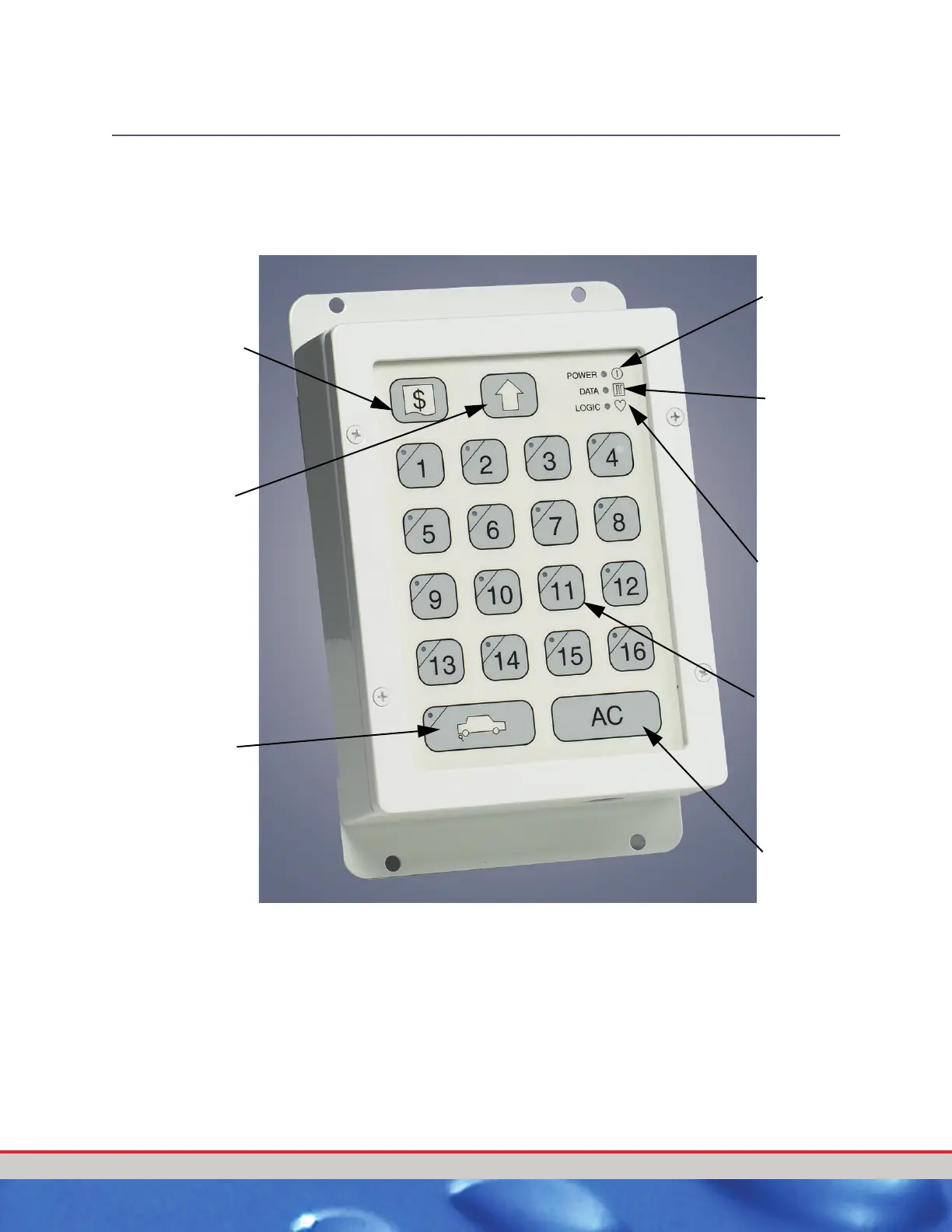

Figure 19. Entrance Keypad
The up arrow
button does not
have an assigned
function.
After selecting
service(s), but
before the Roller
button, press the $
button and it will act
as a confirmation
button and prints a
receipt (optional
printer must be
attached).
The Car button is
the Roller button.
Power indicator
light. When lit,
indicates power
to Entrance
Keypad.
Data indicator
light. When lit,
indicates data is
being sent
fromTunnel
Master

Jr. to the
Entrance Keypad.
(Used for
Logic light
indicates active
communications
between keypad
board and the
keypad lid.
Numeric buttons
(1 - 16) are all
programmable
and used for
entering services
or retracts.
The AC button
displays the stack
with the Tunnel
Master

Jr.
