User Manual—Version 3.0 Tunnel Master
Jr. System Hardware and Installation
January 2016 15
Warning Marking
OUTPUT OVERVIEW
24 Outputs
The Tunnel Master
Jr. Relay Box is the control center for firing the various
outputs or services in the wash tunnel: Soap foamer, Reclaim motor, etc.
The Tunnel Master
Jr. Controller relay box provides for automatic, computer
controlled, or manual firing of the outputs. The relay box can control
up to 24 outputs.

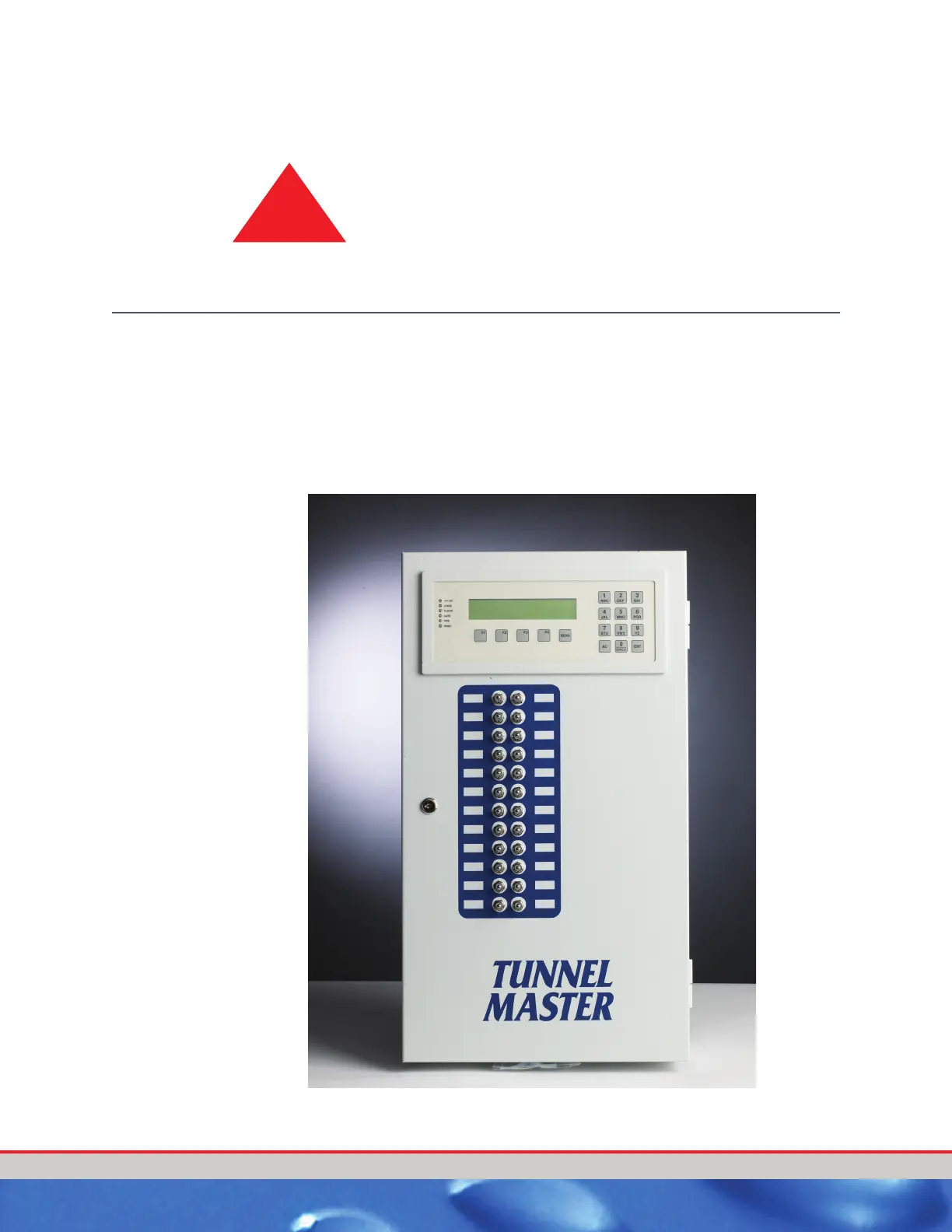

Figure 1. Front Panel
!
WARNING: This warning on equipment or hardware
indicates the need to consult accompanying
documentation before proceeding.
