AFL3-W19A-AL Panel PC

Page 95

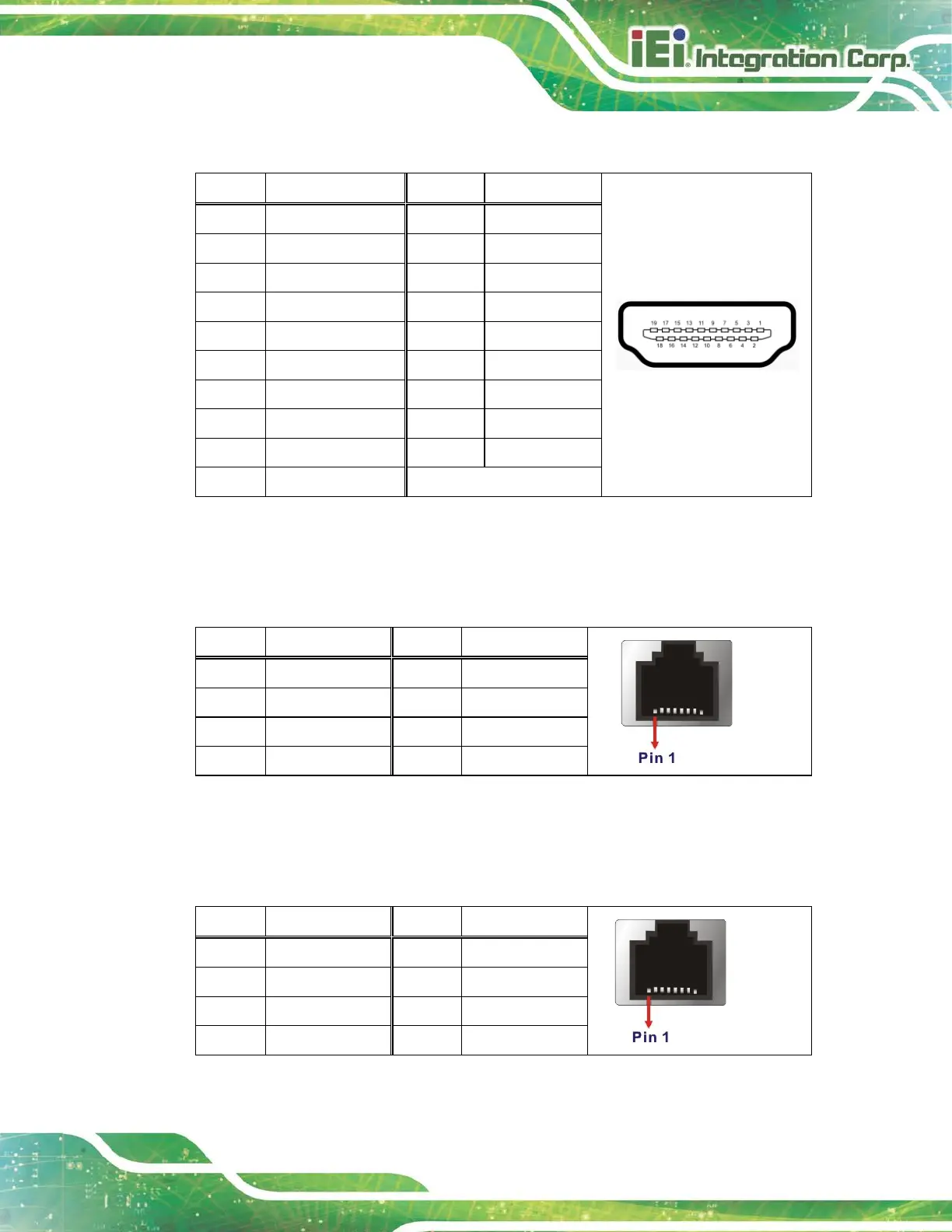

6.3.2 HDMI Connector (HDMI1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 HDMI_DATA2+ 11 GND

2 GND 12 HDMI_CLK#

3 HDMI_DATA2#- 13 N/C

4 HDMI_DATA1+ 14 N/C

5 GND 15 HDMI_SCL

6 HDMI_DATA1#- 16 HDMI_SDA

7 HDMI_DATA0+ 17 GND

8 GND 18 +5VCC

9 HDMI_DATA0#- 19 HDMI_HPD

10 HDMI_CLK+

Table 6-25: HDMI Connector (HDMI1) Pinouts

6.3.3 RS-232/422/485 DB-9 Serial Port (COM1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 -NDCD(TX-)(D-) 5 NSOUT(RX+)

2 -NDSR 6 -NCTS

3 NSIN(TX+)(D+) 7 -NDTR(RX-)

4 -NRTS 8 -XRI

Table 6-26: RS-232/422/485 DB-9 Serial Port (COM1) Pinouts

6.3.4 RS-232 RJ-45 Serial Port (COM2)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 -NDCD 5 NSOUT

2 -NDSR 6 -NCTS

3 NSIN 7 -NDTR

4 -NRTS 8 -XRI

Table 6-27: RS-232 RJ-45 Serial Port (COM2) Pinouts
