AFL3-W19A-AL Panel PC
Page 82
6.1 Peripheral Interface Connectors
The AFL3-W19A-AL panel PC motherboard comes with a number of peripheral interface
connectors and configuration jumpers. The connector locations are shown in Figure 6-1.
The Pin 1 locations of the on-board connectors are also indicated in the diagram below.
The connector pinouts for these connectors are listed in the following sections.

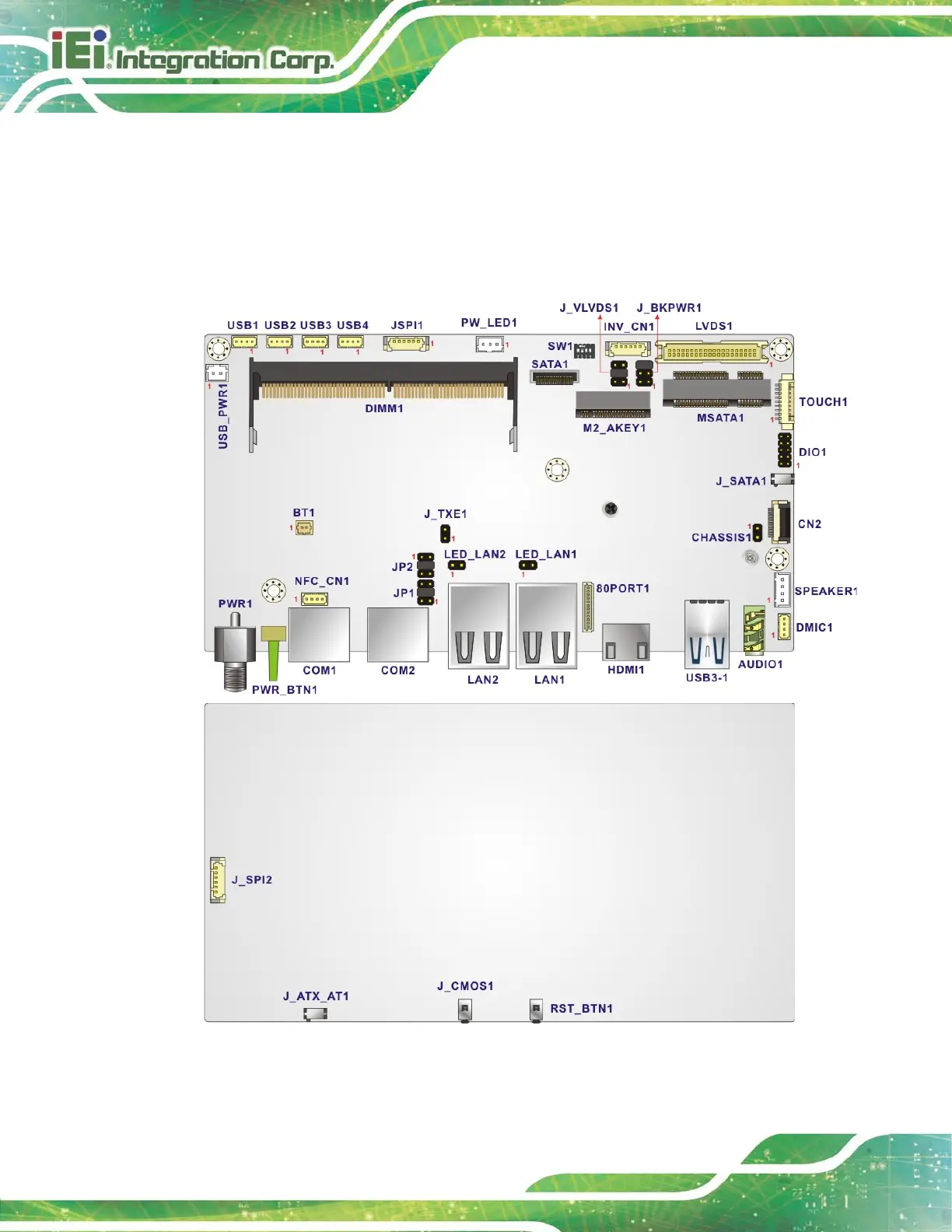

Figure 6-1: Main Board Layout Diagrams
