IEI Technology AFL3-W19A-AL User Manual

AFL3-W19A-AL Panel PC
Page 20

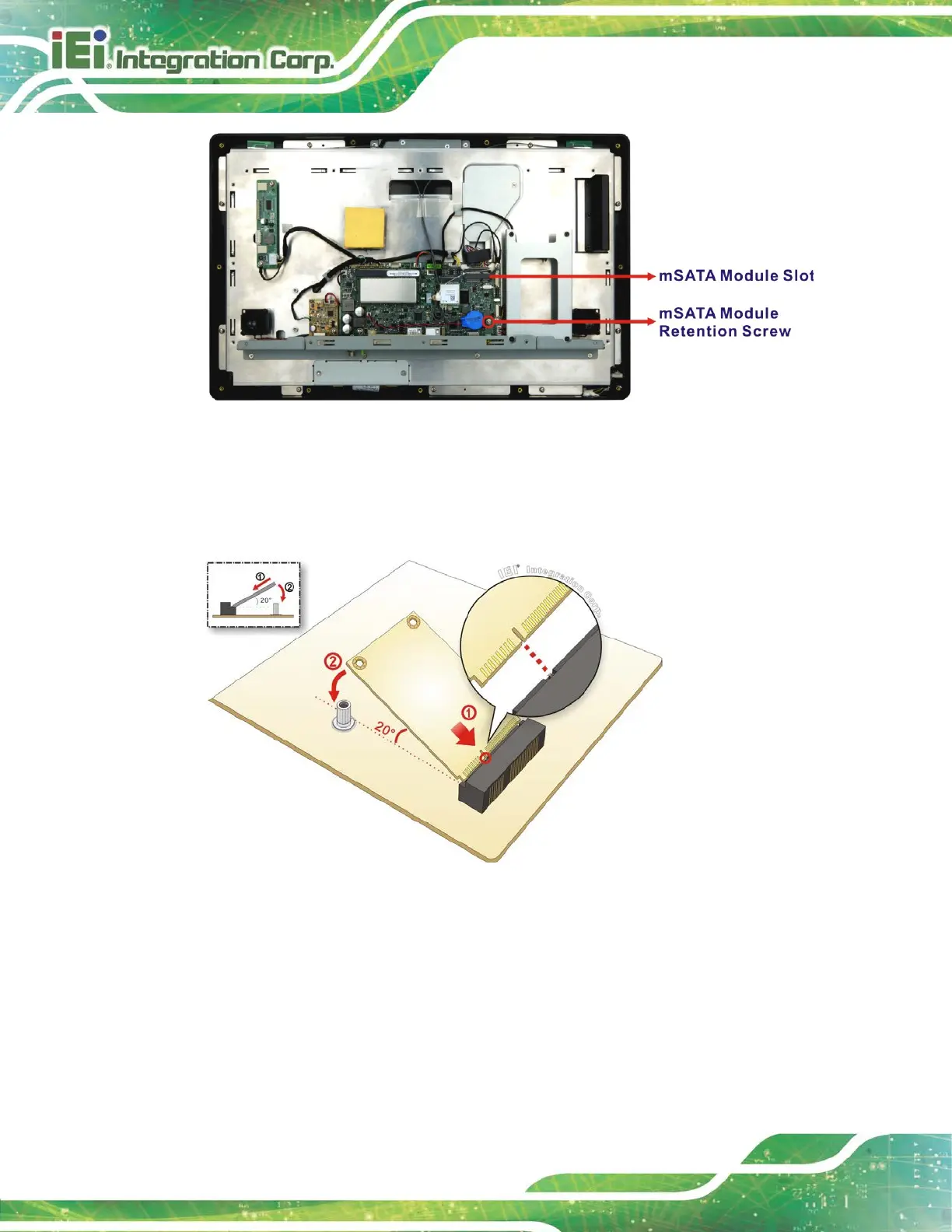

Figure 3-3: mSATA Module Slot Location
Step 3: Line up the notch on the mSATA module with the notch on the connector. Slide
the PCIe Mini card into the socket at an angle of about 20º (Figure 3-4).
Figure 3-4: Installing an mSATA Module
Step 4: Secure the mSATA module with the retention screw. Push the other end of the
mSATA module down and secure the module with the previously removed
retention screw (Figure 3-4).
