IEI Technology AFL3-W19A-AL User Manual

AFL3-W19A-AL Panel PC
Page 28

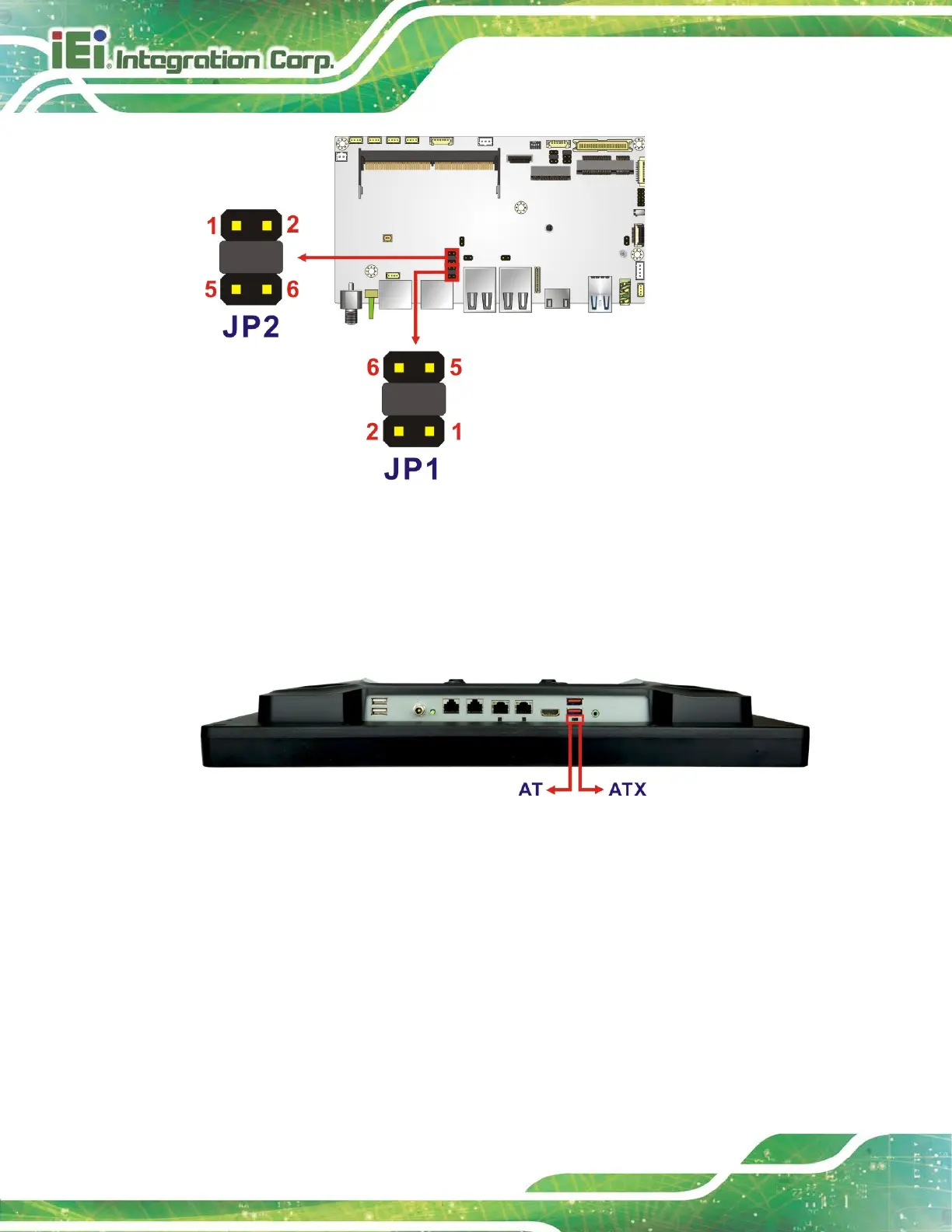

Figure 3-13: DB-9 Serial Port Pin 9 Setting Jumper Locations
3.8 AT/ATX Mode Selection
AT or ATX power mode can be used on the AFL3-W19A-AL. The selection is made
through an AT/ATX switch located on the bottom panel (Figure 3-14).
Figure 3-14: AT/ATX Switch Location
3.8.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFL3-W19A-AL panel PC turns on automatically when the power is
connected. The AT mode benefits a production line to control multiple panel PCs from a
central management center and other applications including:
 ATM
 Self-service kiosk
