AFL3-W19A-AL Panel PC

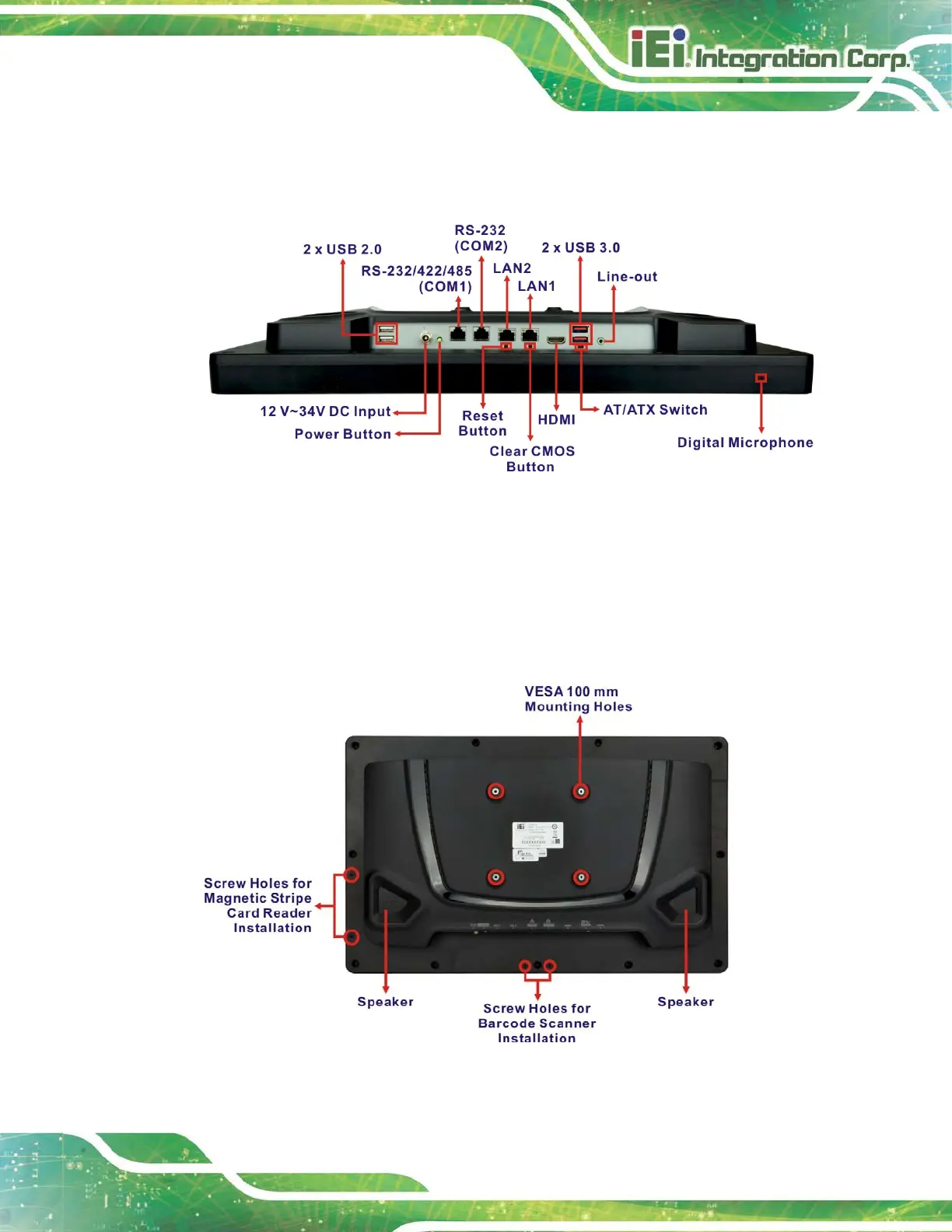

1.4 Bottom Panel
The bottom panel of the AFL3-W19A-AL has the following connectors and switches.
Figure 1-3: Bottom Panel
1.5 Rear Panel
The rear panel has two speakers and retention screw holes that support VESA mounting.
The rear panel also has several retention screw holes for installing the optional barcode
scanner and magnetic stripe card reader.
Figure 1-4: Rear View
