AFL3-W19A-AL Panel PC

Page 96

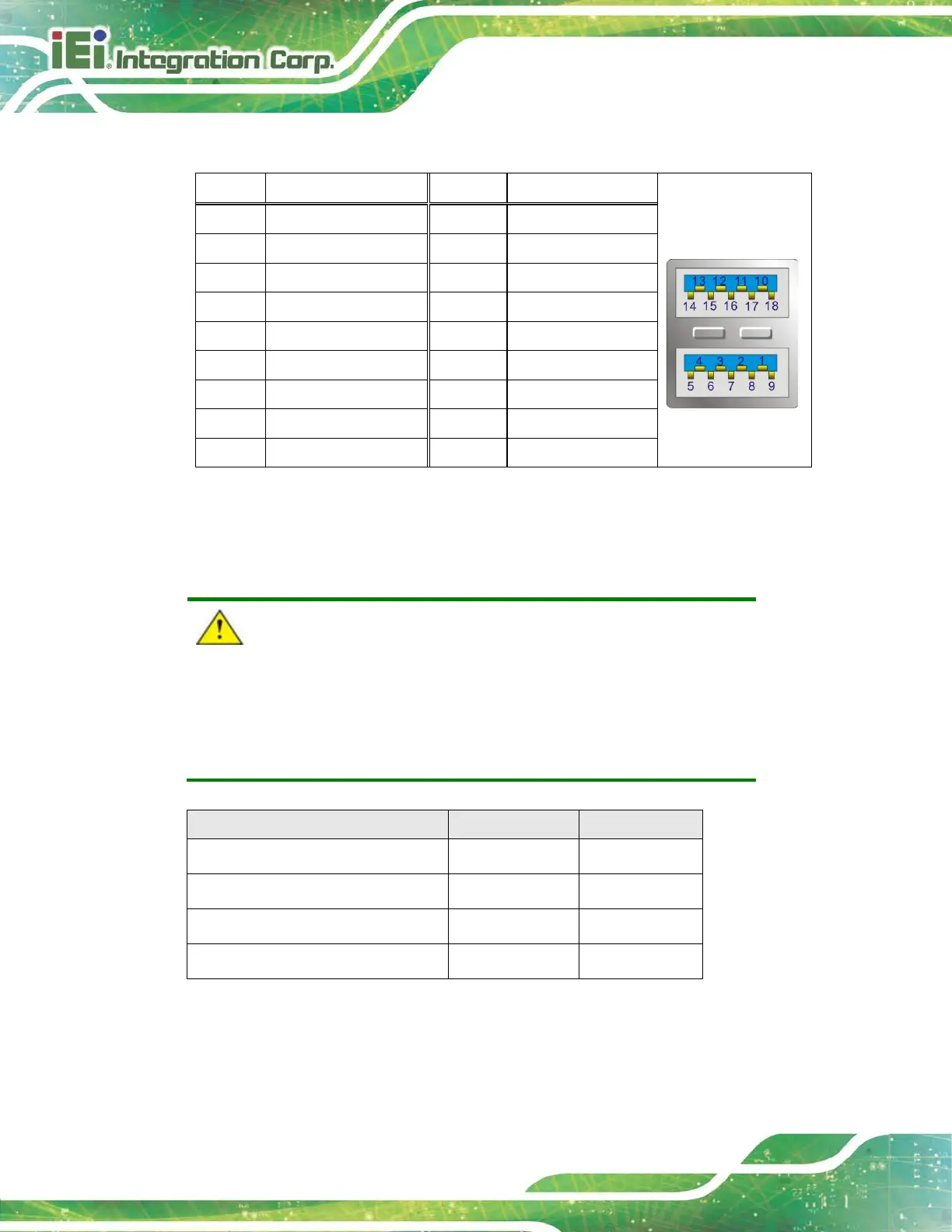

6.3.5 USB 3.0 Connectors (USB3-1)

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 +5Vsus 10 +5Vsus

2 DATA0- 11 DATA1-

3 DATA0+ 12 DATA1+

4 GND 13 GND

5 SSRX0- 14 SSRX1-

6 SSRX0+ 15 SSRX1+

7 GND 16 GND

8 SSTX0- 17 SSTX1-

9 SSTX0+ 18 SSTX1+

Table 6-28: USB 3.0 Connectors (USB3-1) Pinouts

6.4 Preconfigured Jumper Settings

CAUTION:

The following jumpers are preconfigured for the AFL3-W19A-AL. Users

should not change these jumpers except the J_TXE1 jumper

(Table 6-29).

Jumper Name Type Label

Backlight voltage selection 6-pin header J_BKPWR1

Flash descriptor security override 2-pin header J_TXE1

LVDS voltage selection 6-pin header J_VLVDS1

LVDS panel resolution selection Switch SW1

Table 6-29: Preconfigured Jumpers
