3.6 HDD Installation
To install the HDD into the system, please follow the steps below:
Step 1: Remove the plastic back cover and the internal aluminum cover. See
Section 3.4 above.
Step 2: Remove the four HDD bracket retention screws and lift the HDD bracket off the
panel PC.

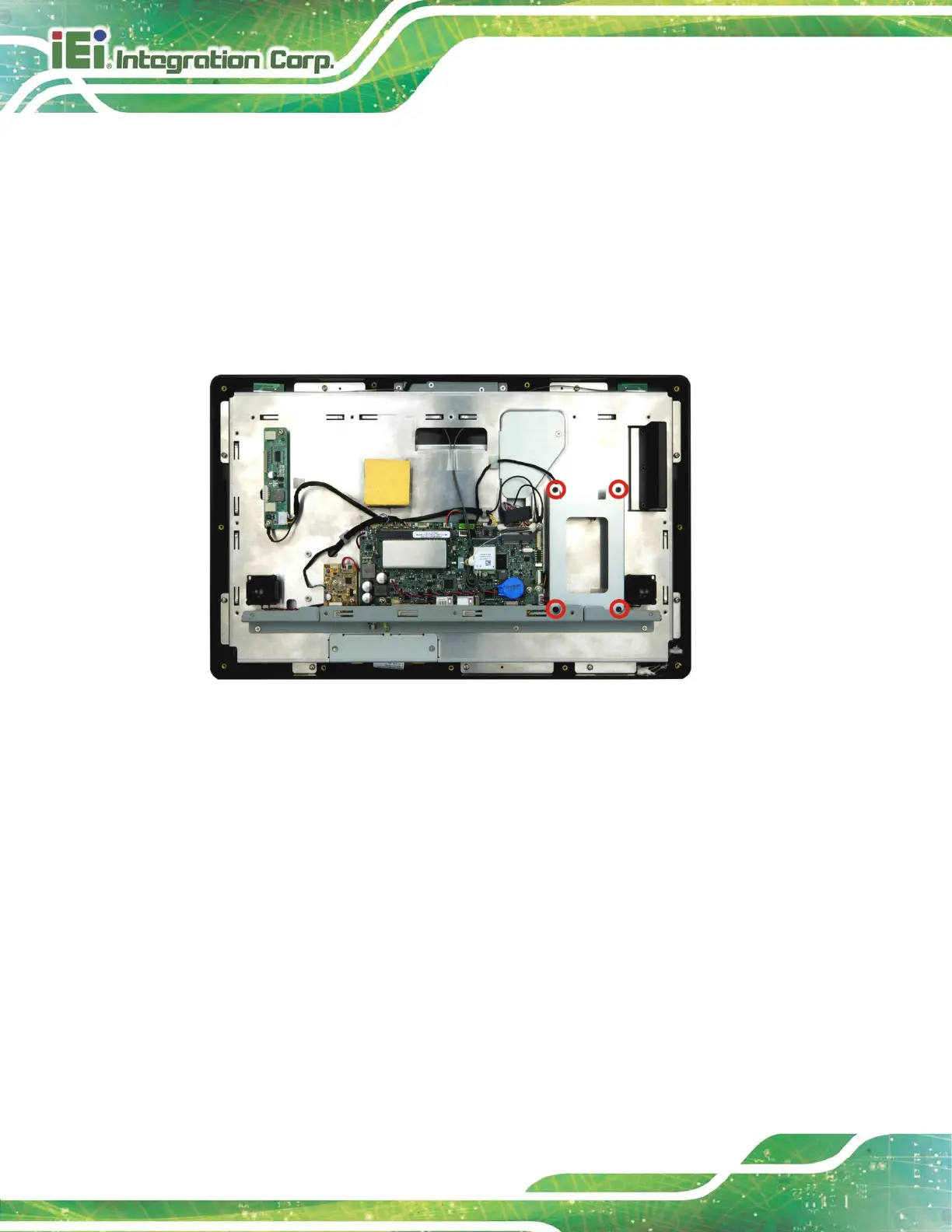

Figure 3-7: HDD Bracket Retention Screws
Step 3: Attach the HDD brackets to the HDD. To do this, align the four retention screw
holes in the both sides of the HDD bracket with the retention screw holes on the
sides of the HDD. Insert four retention screws into the HDD bracket
(Figure 3-8).
