AFL3-W19A-AL Panel PC

Page 32

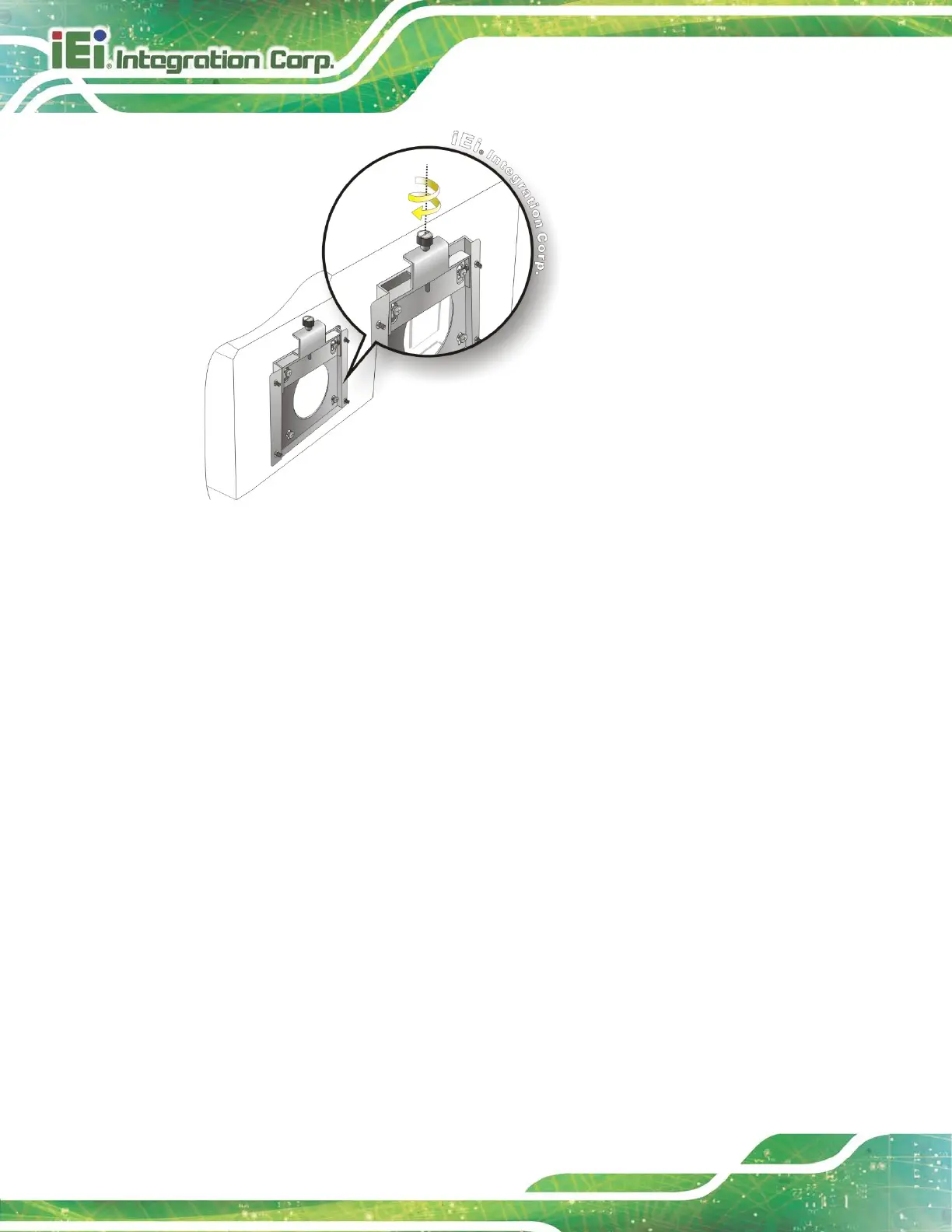

Figure 3-17: Secure the Panel PC

3.9.2 Panel Mounting

To mount the AFL3-W19A-AL flat bezel panel PC into a panel, please follow the steps

below.

Step 1: Select the position on the panel to mount the panel PC.

Step 2: Cut out a section corresponding to the size shown below. The size must be

smaller than the outer edge.
