 Anti-static Discharge: If a user open the rear panel of the flat bezel panel PC,
to configure the jumpers or plug in added peripheral devices, ground
themselves first and wear an anti-static wristband.
3.3 Installation and Configuration Steps
The following installation steps must be followed.
Step 1: Unpack the flat bezel panel PC.
Step 2: Install an mSATA module or an HDD.
Step 3: Configure the system.
Step 4: Connect peripheral devices to the flat bezel panel PC.
Step 5: Mount the flat bezel panel PC. Step 0:
3.4 Removing the Back Covers
To access the AFL3-W19A-AL internally the plastic back cover and the internal aluminum
cover must be removed. To remove the covers, please follow the steps below.
Step 1: Remove the 11 retention screws from the back cover. See Figure 3-1.

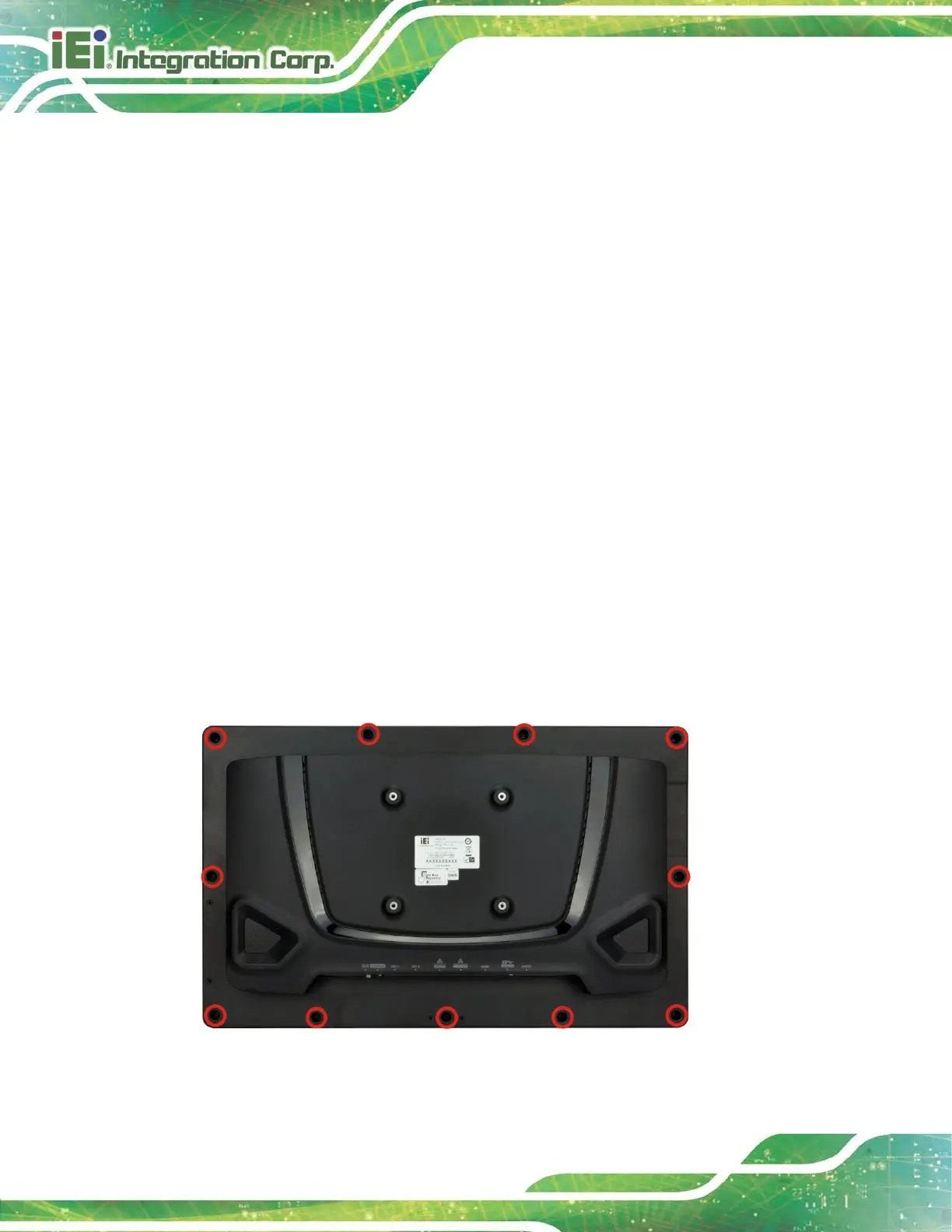

Figure 3-1: Back Cover Retention Screws
