IEI Technology AFL3-W19A-AL User Manual

AFL3-W19A-AL Panel PC
Page 40
3.12 Clear CMOS
If the AFL3-W19A-AL fails to boot due to improper BIOS settings, the clear CMOS button
clears the CMOS data and resets the system BIOS information. To do this, push the clear
CMOS button for three seconds, then restart the system. The clear CMOS button location
is shown in Figure 3-26.

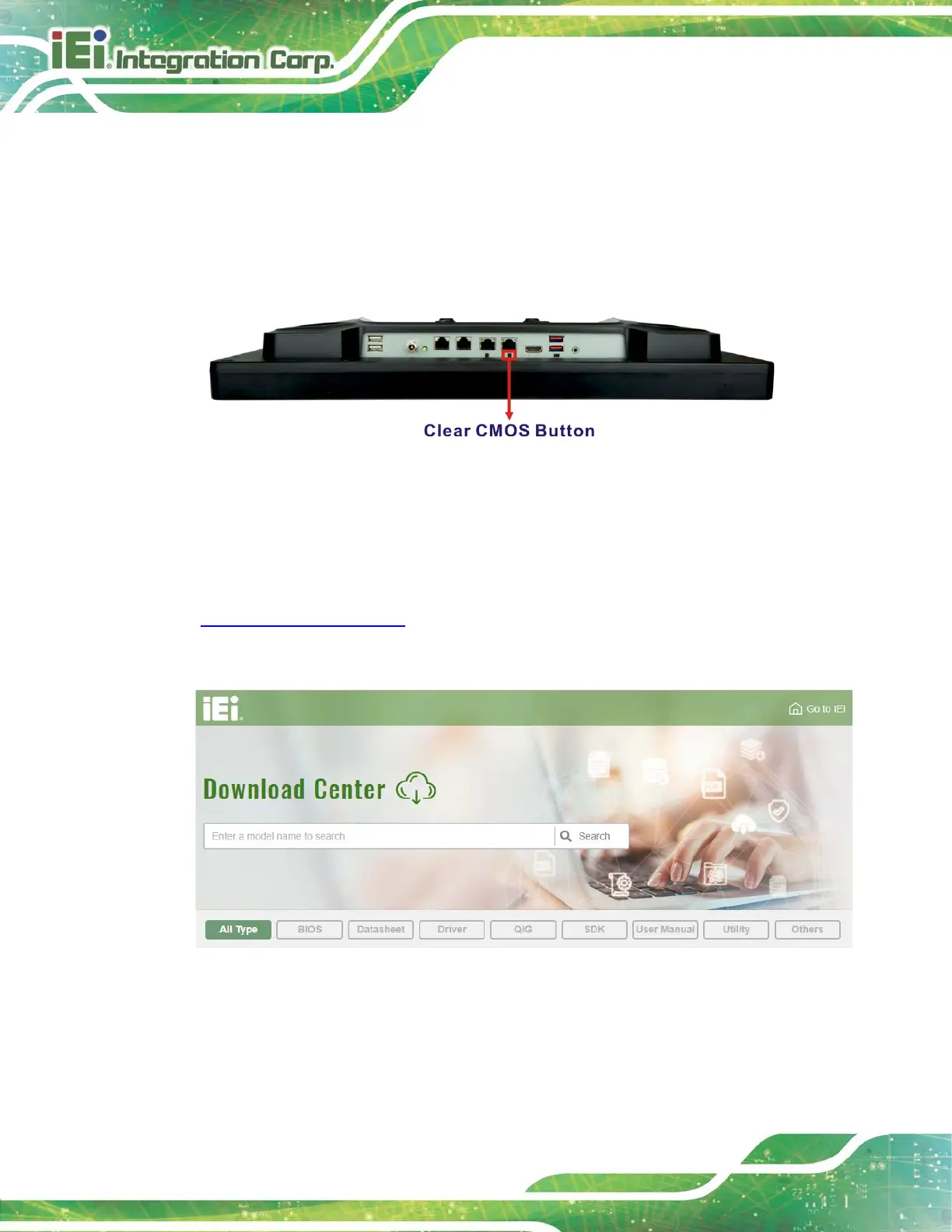

Figure 3-26: Clear CMOS Button Location
3.13 Software Installation
All the drivers for the AFL3-W19A-AL are available on IEI Resource Download Center
(https://download.ieiworld.com
). Type AFL3-W19A-AL and press Enter to find all the
relevant software, utilities, and documentation.
Figure 3-27: IEI Resource Download Center

IEI Technology AFL3-W19A-AL Specifications

General

Brand	IEI Technology
Model	AFL3-W19A-AL
Category	Industrial PC
Language	English
