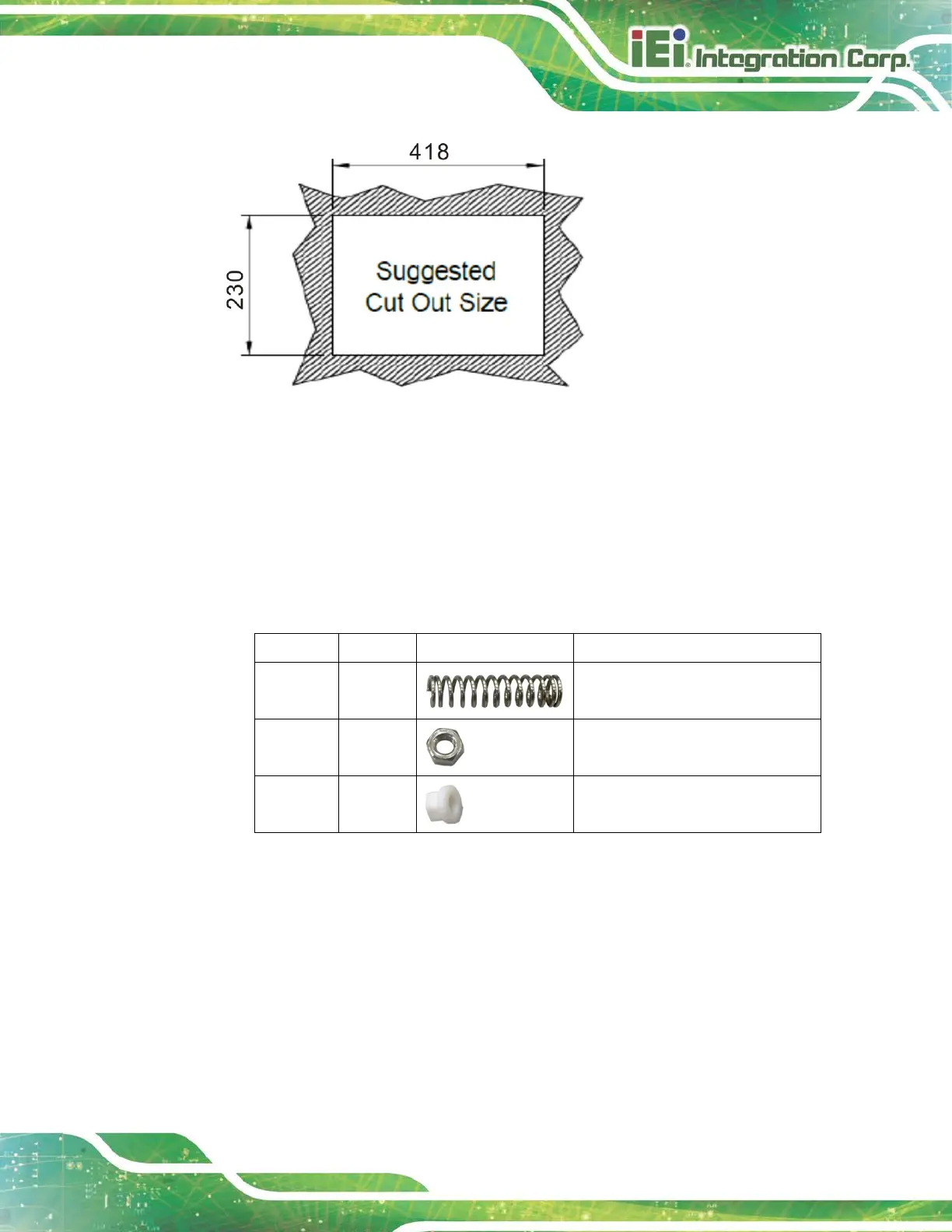

Figure 3-18: Cutout Dimensions
Step 3: Slide the panel PC through the hole until the frame is flush against the panel.
Step 4: Insert a M5*50 screw into the screw hole on the side of the panel mounting
bracket. Then, install the following components onto the screw in sequence.
See Figure 3-19.
Sequence Item Photo Instruction
1 Spring
Install a spring onto the screw.
2 Nut
Tighten a nut until the spring is
compressed enough for plastic cap.
3 Plastic
cap
Tighten a plastic cap onto the end of
screw thread.
Step 5: Repeat Step 4 to install the other three screws into the sides of the two panel
mounting brackets.
