Innova MATRIX MK II+ User Manual

Innova – Matrix MK II+
Operation and Maintenance Manual
Date
12.12.2017
Page
72 of 74
Project No.:
604653
Document No.:
MAN-000015294
Rev.
5
P.O. BOX 390 Tel.: +47 51 96 17 00 post@innova.no
4067 Stavanger, Norway Fax.: +47 51 96 17 01 www.innova.no

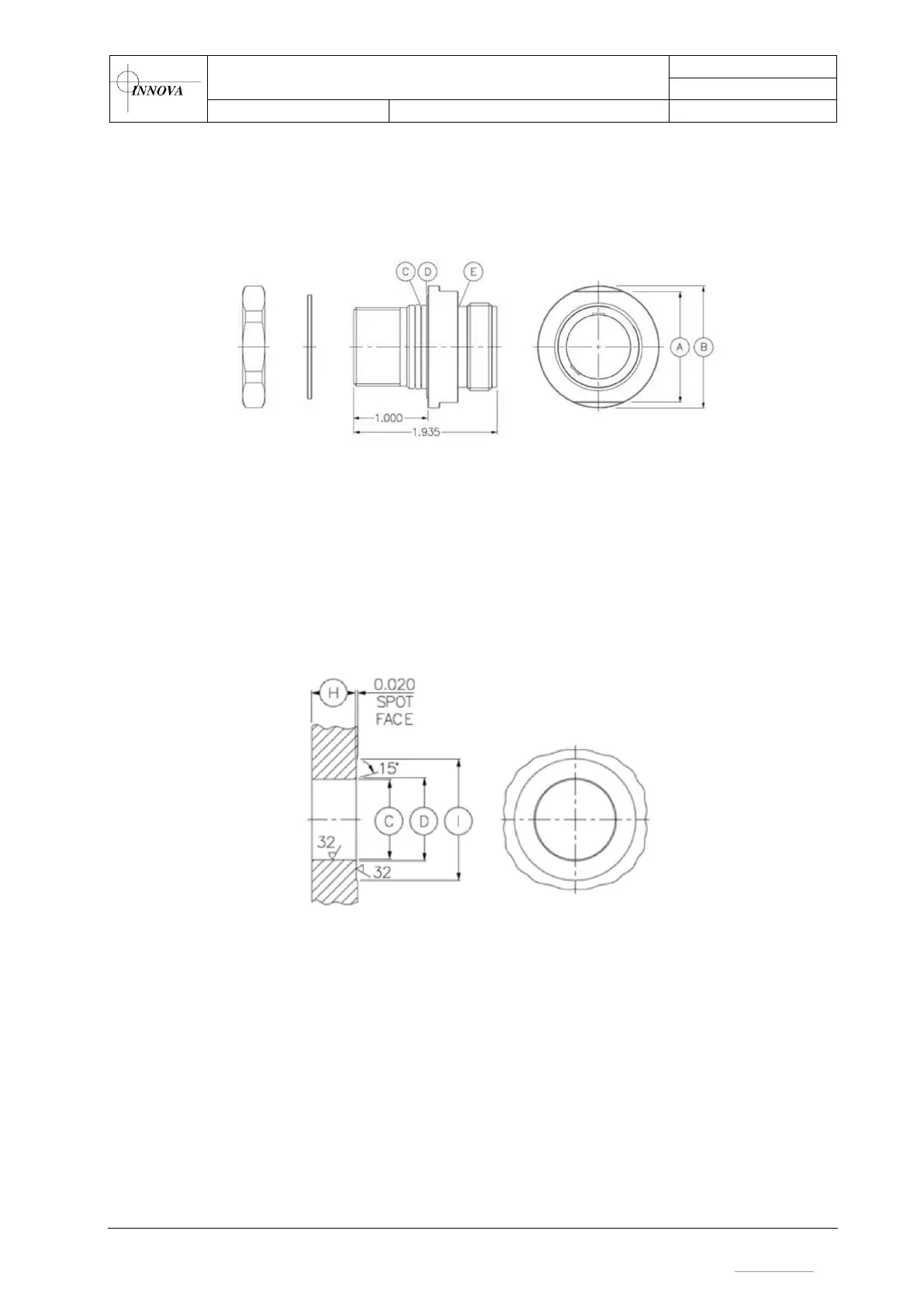

Fibre connector interface details, Seacon OPT-G-4-BCR
Connector dimensions:
A – flats (inches) : 1,25
B – diameter (inches) : 1,400
C – O-ring : 018
D – O-ring : 022
E – O-ring (internal) : 016
Interface dimensions, using nut and washer:
C – diameter (inches) : 0,868 – 0,870
D – diameter (inches) : 0,900
I – diameter (inches) : 1,500
H – (inches) : 0,400 – 0,710
