2.5.4.1. General Care
• Always handle the gimbal with care. If you need to tilt the camera manually
(when not connected or while the Intel® Falcon™ 8+ UAV is switched off), please
do so very cautiously. If too much force is applied, the gear wheels of the servo
motors might break.
• Keep the airplane mode of the camera switched on, to avoid radio interference
from the camera (MENU > Setup > Page 2 > Airplane Mode > ON).
2.5.4.2. Inspection Payload Control By The CTR
The following figure describes in detail how the Inspection Payload can be controlled
by the functional elements of the CTR.

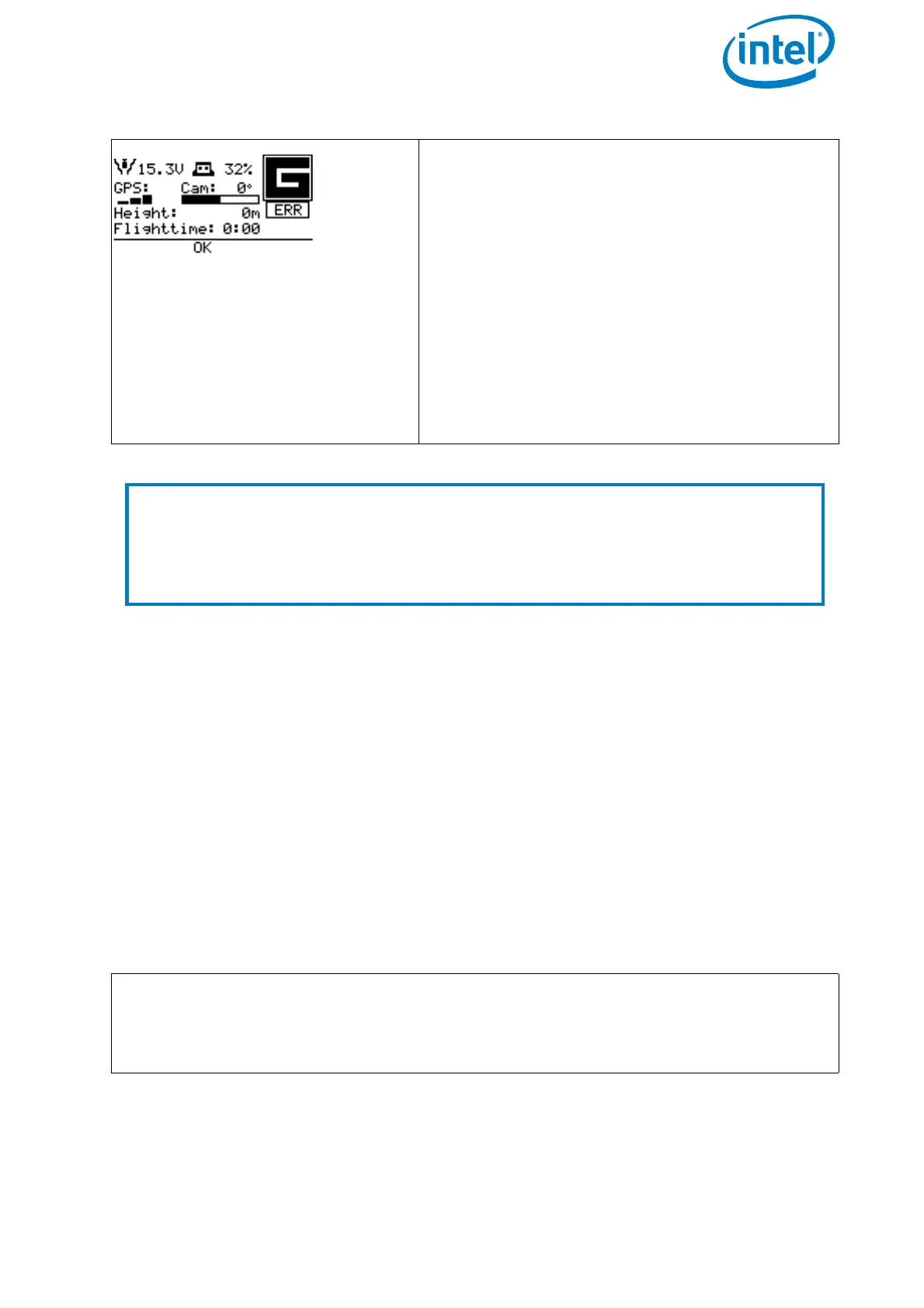

When the FLIR Tau 2 640 IR Raw Data Logger
cannot access the SD card, an error message
ERR will be displayed instead of the number of
remaining images.
In case this happens, please take out the SD
card and troubleshoot.
If after reinserting, if the error message remains,
reformat the SD card.
Format settings are:
• File system: FAT32
• Allocation unit size: 64 kilobytes
• Volume label: FLIRSD
Note
The FLIR and the Panasonic RGB camera can record video. When a video
actively recording on the Panasonic RGB camera, the camera will not output any
preview video. This means that the preview video on the touchscreen tablet of
the CTR must be switched to show the FLIR image (see “Inspection Payload
Control By The CTR” on page 44).
Figure 2.19: Inspection Payload: CTR Control Layout
FLIR Tau 2 640 performs flat field correction (FFC). The FLIR automatically performs
a FCC every 10 seconds (for more information about the FFC please read: http://
www.flir.com/cvs/cores/knowledgebase/index.cfm?CFTREEITEM-
KEY=327&view=35774
