Intel® Server System M50CYP1UR Family System Integration and Service Guide
68
6.1.1 System Cover Removal
Removal of both top cover panels is necessary when installing or replacing any system component within the
server chassis. Before removing the top cover, power down the system and unplug all peripheral devices and
the power cable(s).

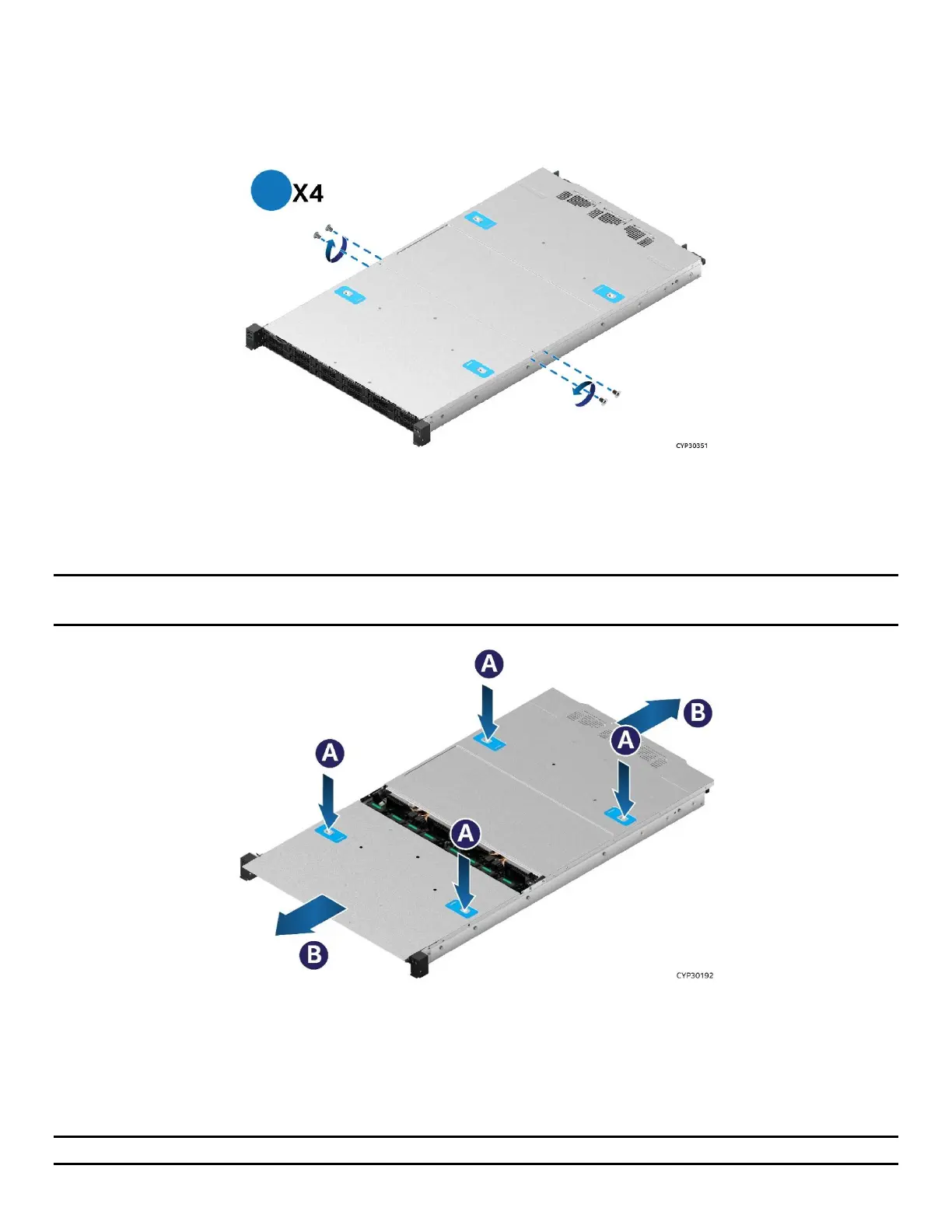

Figure 74. System Top Cover Panel Shipping Screws
The system ships from the factory with the front system cover panel and back system cover panel screwed
to the chassis. A total of four screws, one on each side of the front panel and one on each side of the back
panel, need to be removed to detach both top cover panels from the chassis.
Note: A non-skid surface or a stop behind the server system may be needed to prevent the server system
from sliding on the work surface.
Figure 75. System Cover Removal
For each top cover panel:
1. While pushing down on both the left and right buttons of the given top panel (see Letter A), slide the
top cover panel towards the front (front panel) or back (back panel) of the chassis (see Letter B).
2. Carefully lift the top cover panel up and away from the chassis.
Note: Each top cover panel can slide along the chassis base for 10 mm and then needs to be lifted.
