Intel® Server System M50CYP1UR Family System Integration and Service Guide
77

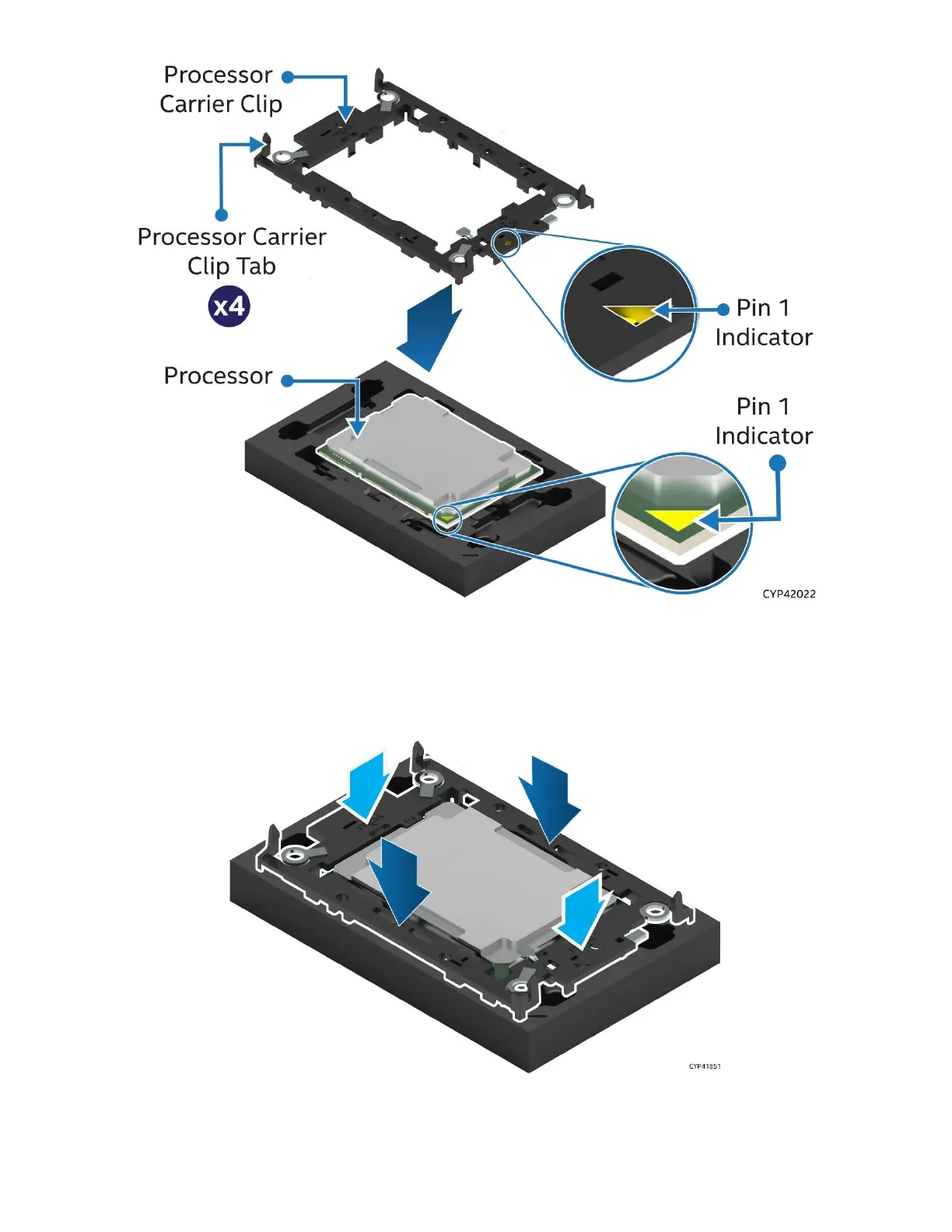

Figure 87. Installing Processor Carrier Clip onto Processor – Part 1
1. Place the processor carrier clip on top of the processor while it is still on the tray.
2. Ensure the pin 1 indicator on the processor carrier clip is aligned with the pin 1 indicator of the
processor.
Figure 88. Installing Processor Carrier Clip onto Processor – Part 2
3. Gently press down on two opposite sides at a time of the processor carrier clip until it clicks into place.
