Intel® Server System M50CYP1UR Family System Integration and Service Guide
78
•

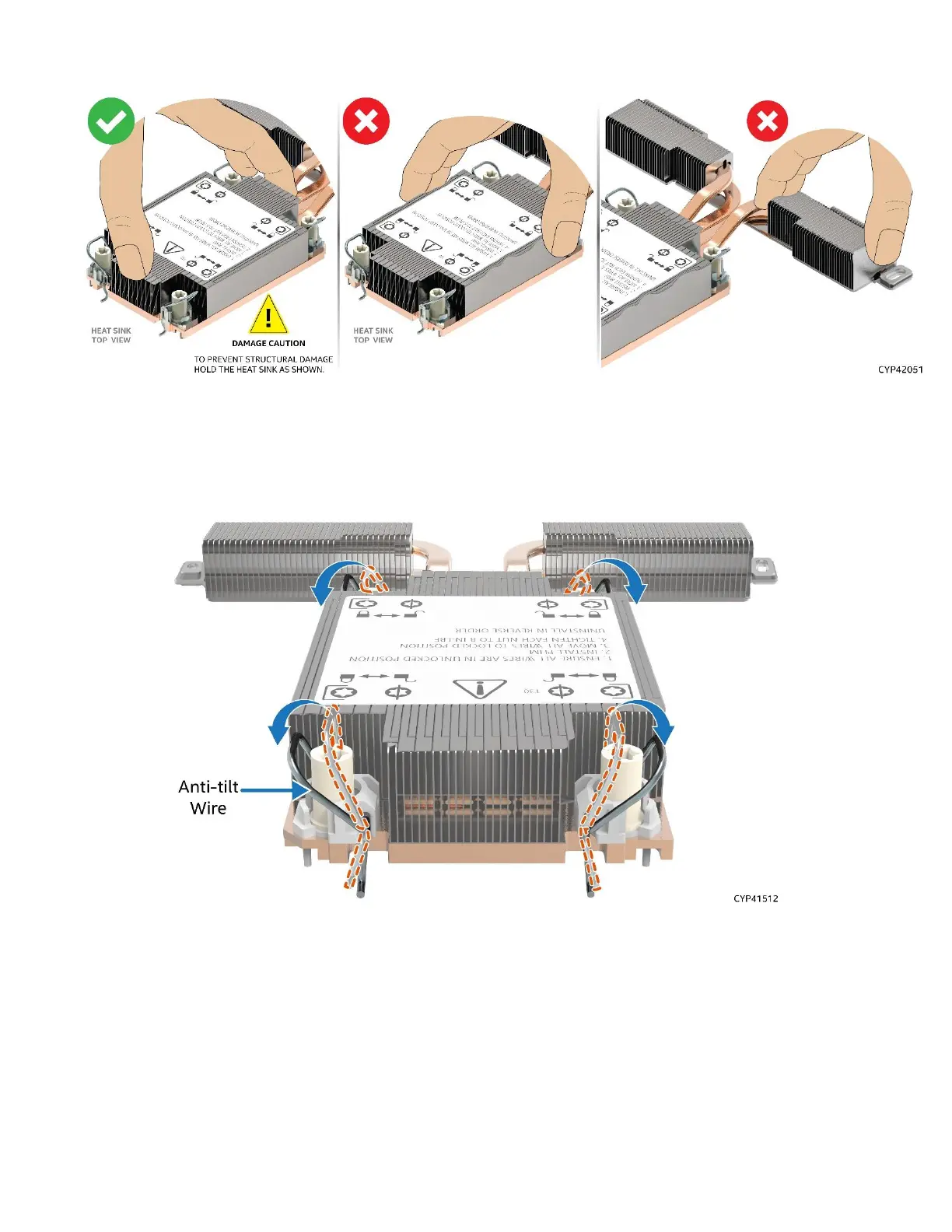

Figure 89. Removing Heat Sink from its Packaging
4. Remove the heat sink from its packaging. To avoid damage to the heat sink, grasp it by its narrower top
and bottom edges.
Figure 90. Setting the Processor Heat Sink Anti-tilt Wires to the Outward Position
5. Set the anti-tilt wires to the outward position.
6. Turn the heat sink over and place it bottom side up on a flat surface.
7. Remove the plastic protective film from the Thermal Interface Material (TIM).
