Intel® Server System M50CYP1UR Family System Integration and Service Guide
80
•

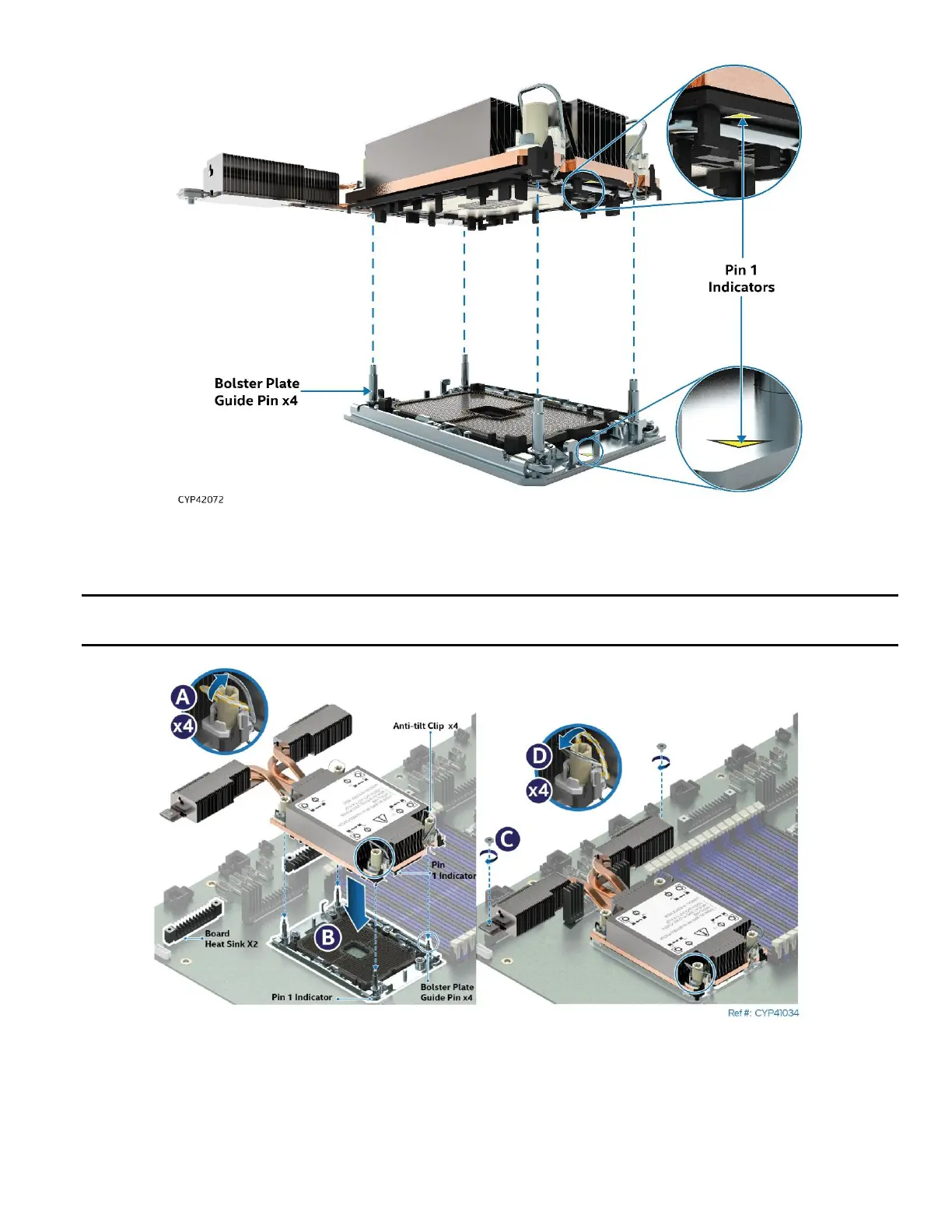

Figure 93. PHM Alignment with Socket Assembly
3. Align pin 1 indicators of the processor carrier clip and processor with pin 1 indicator on the bolster plate.
Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the PHM
onto the processor socket. Do not drop it.
Figure 94. PHM Installation onto Server Board
4. Set all four anti-tilt wires on the heat sink to the inward position (see Letter A).
5. Holding the PHM horizontally, carefully lower it on to the bolster plate’s alignment pins (see Letter B).
6. Set all four anti-tilt wires on the heat sink to the outward position (see Letter D).
7. Using a Phillips #2 screwdriver, tighten the heat sink extension screws (see Letter C).
