The Intel® Server System M50CYP1UR family supports 2.5” SSDs with 7 mm of thickness when used in
conjunction with the supplied blanks. The supplied blank for 2.5” bays has two parts: top and bottom. The
top part must be attached to the 7 mm drive to fit properly inside the 2.5” bay. The following provides
instructions to attach the supplied blank part to a 7 mm thick SSD. The 2.5” SSDs with 15-mm thick drive do
not require any assembly with the top part of the drive blank.

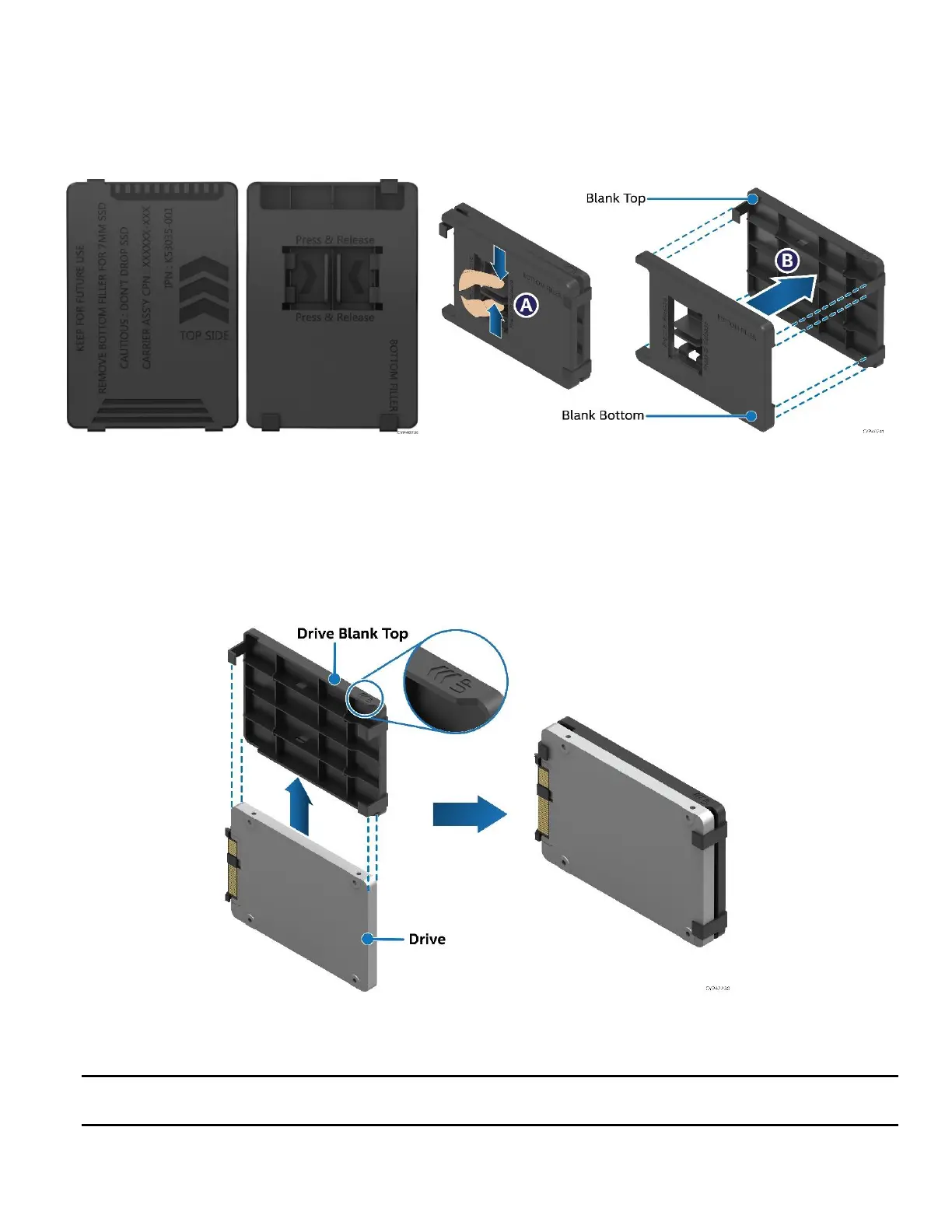

Figure 99. Separating Top and Bottom Parts of Drive Blank
4. Remove the drive blank from the system (see Figure 97).
5. Press the handles at the bottom part of the drive blank (see Letter A).
6. Separate the top and bottom parts while pressing the handles (see Letter B).
Figure 100. Assembling the 2.5” SSD Drive with the Top Part of Drive Blank
5. Insert the 2.5-inch 7 mm SSD drive into the top part of the drive blank as shown in the above figure.
Note: Inserting it in the opposite direction could potentially scratch the gold fingers of the SSD
connector.
