Intel® Server System M50CYP1UR Family System Integration and Service Guide
82

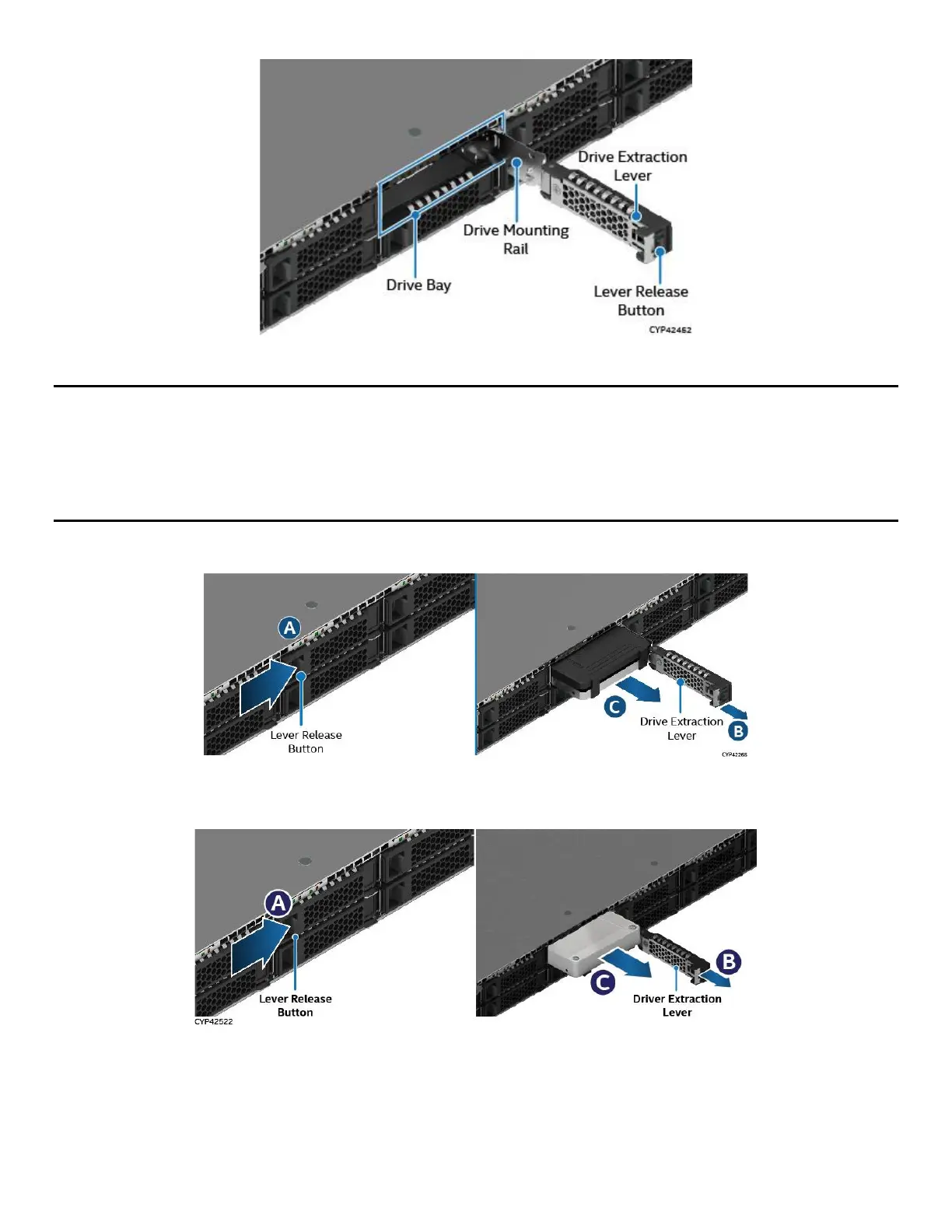

Figure 96. Drive Bay Components
Note: To ensure proper system airflow requirements, all front drive bays must be populated with either a
drive or supplied drive blank.
Note: The 2.5” drive mounting rails in the system are not removable. They slide out so that the storage drives
can be installed or removed. When sliding out a drive mounting rail from the system, only pull it as much as
it allows without forcing it.
Figure 97. 2.5” 7 mm Drive Removal
Figure 98. 2.5” 15 mm Drive Removal
1. Press the button on the drive extraction lever to release it (see Letter A).
2. Using the lever, pull the drive mounting rail part way out of the drive bay (see Letter B).
3. Remove the drive (or drive blank) from the drive mounting rail (see Letter C).
