Intel® Server System M50CYP1UR Family System Integration and Service Guide
87

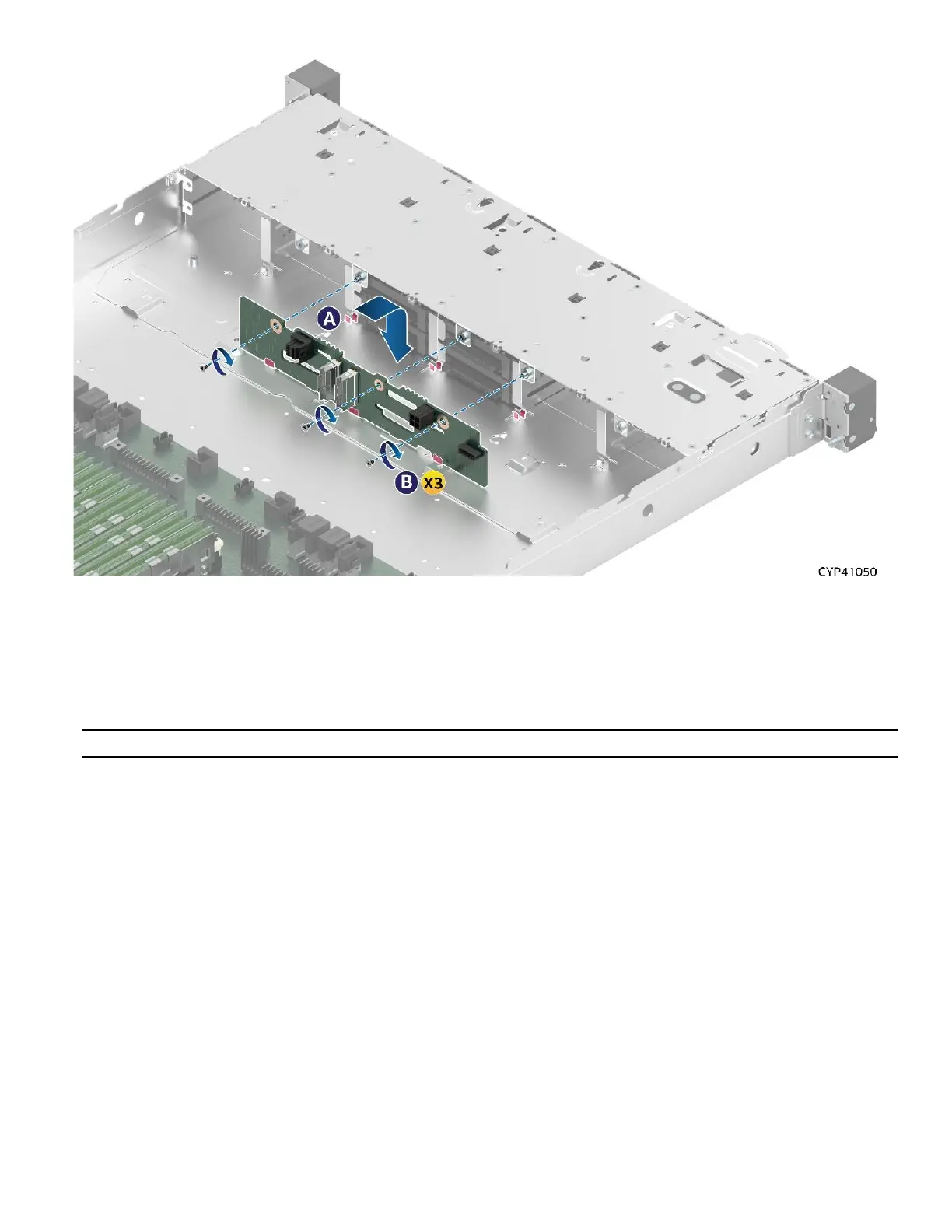

Figure 106. 4 x 2.5” Backplane Installation
7. Locate the replacement backplane.
Note: Hold the backplane only by the edges. Do not push or pull on any components on the backplane.
8. Position the backplane to align with the pink highlighted areas shown in the above figure (see Letter A).
9. Slide the backplane down to lock it into place.
10. Secure the backplane with the fastener screws as shown (see Letter B).
11. Reinstall the drives and/or drive blanks as needed.
12. Reinstall the system top cover (see Section 6.1.2).
