System Conguration

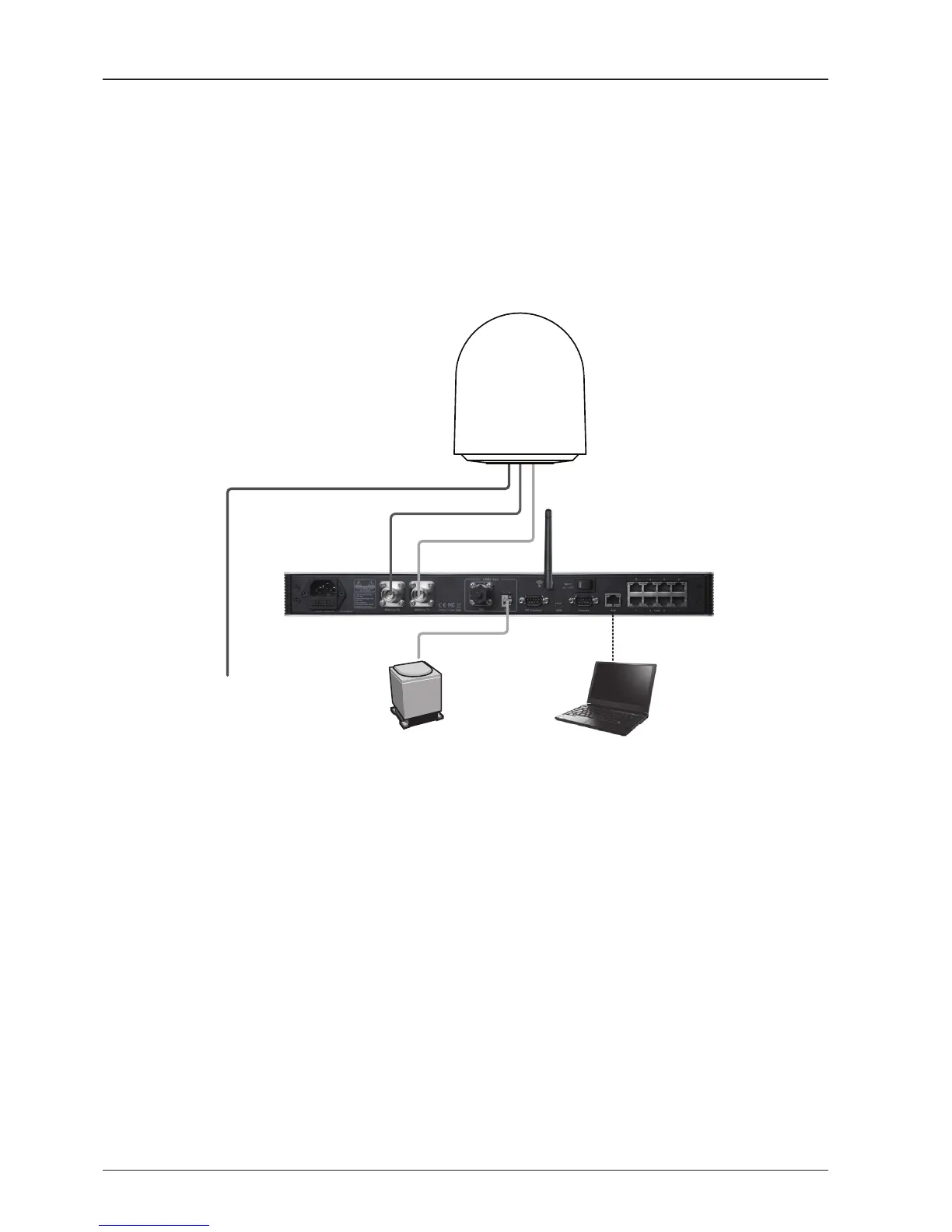

For your satellite communication system to work correctly, the system will have to be connected with all of
the provided components as shown in the gure below. A seperate purchase of a satellite modem and ship's
gyrocompass may be required.
Below Deck Terminal(BDT)
PC Interface
Antenna Tx
NMEA
Antenna Rx
PC
Ship’s Gyrocompass
(Not supplied)
AC 100 ~ 240V
(50~60Hz, 4A)
AC 100 ~ 240V
(50~60Hz, 1A)
Antenna
