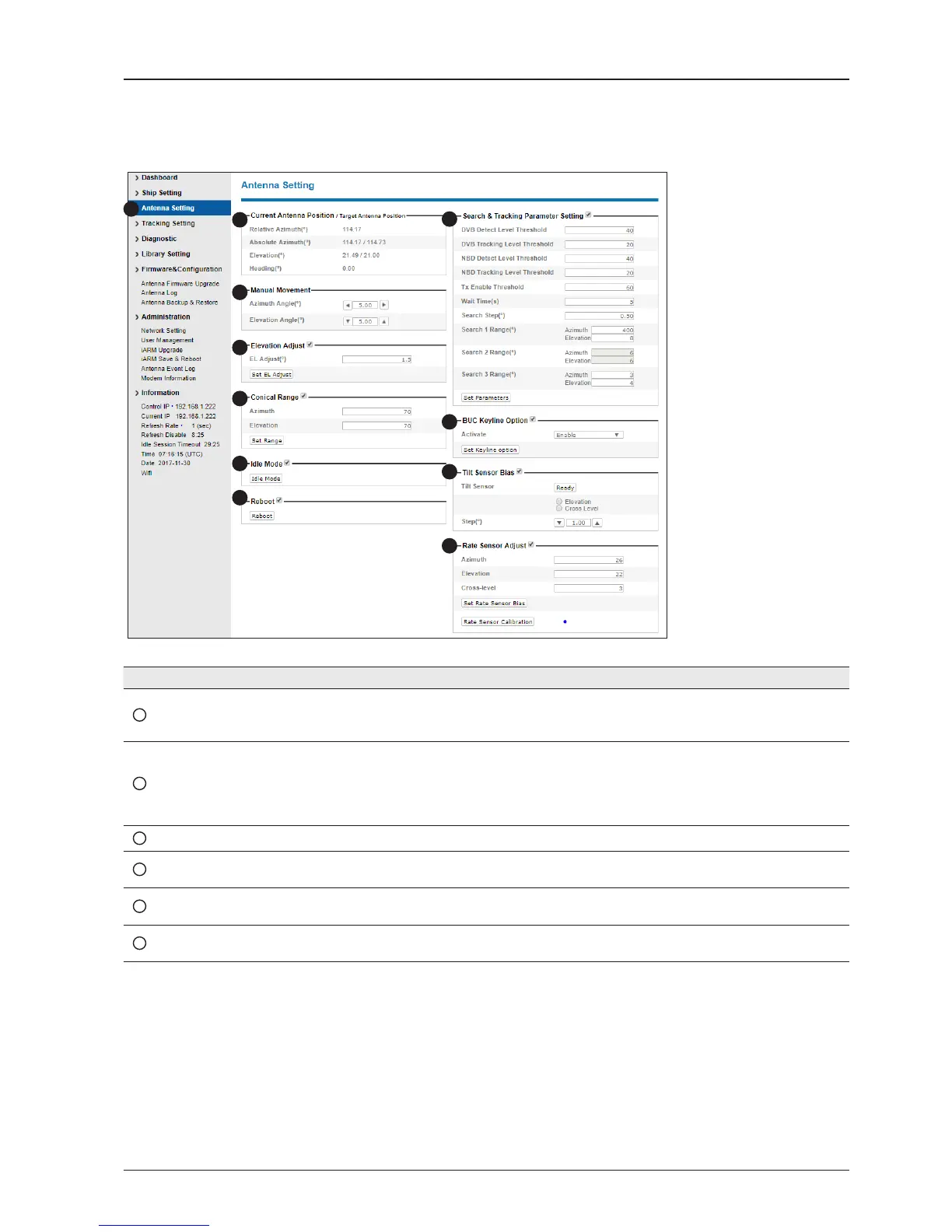

Antenna Setting
No. Item Description
1
Antenna Setting
Set current antenna position and Search and Tracking parameters. These parameters
should only be changed by an authorized service technician. Improper setting of these
parameters will render your system inoperable.
2
Current Antenna Position/
Target Antenna Position
Display current antenna position.
-
Relative Azimuth: display antenna relative AZ angle.
-
Absolute Azimuth: display antenna absolute AZ angle.
- Elevation: display antenna elevation angle.
- Heading: display ship’s heading information.
3
Manual Movement Move antenna azimuth and elevation angles to nd the desired satellite manually.
4
Elevation Adjust
Adjust the elevation to offset the angle difference between the mechanical elevation
angle and actual elevation angle.
5
Conical Range
The relative force of the motors controlling azimuth and elevation. Set the conical range
while the antenna is in tracking mode.
6
Idle Mode
Release the elevation and cross level motor brakes while the antenna is in SETUP mode.
The antenna can be moved manually during the mode.
