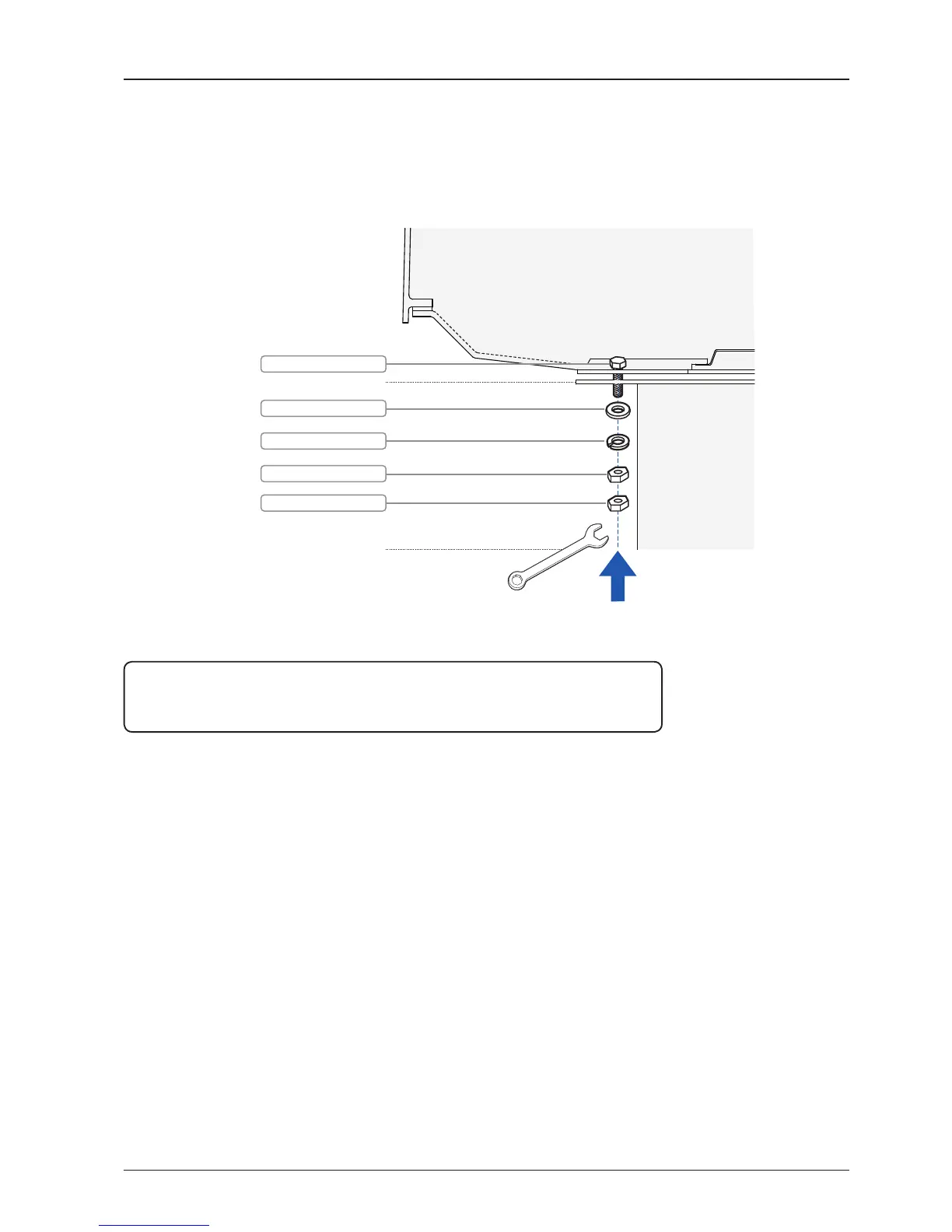

Mounting Radome
1. Bolt the radome base directly to the support pedestal. Tighten the Washers/Nuts from bottom to top using
the 19mm Spanner/Torque Wrench.
2. Remove the lifting strap.
NOTE: Make sure when mounting the radome, use the shipping bolts on the
radome's base. Bring the washers/nuts from the components box. Apply Loctite
#262 or equivalent to the bolt thread, and fasten it to a torque setting of 110Nm.
M12 Hex. Bolt
Mounting Surface
Mast
Antenna Unit (Side View)
M12 Flat Washer
M12 Spring Washer
M12 Hex Nut
M12 Hex Nut
19 mm Spanner/Torque Wrench
To Next Page
