Intellian GX60 User Manual

GX60 – Marine Satellite Communication System
44
RF Cable Connection
Connecting Cables to BDT
CAUTION: Please ensure that the Tx and Rx cables are correctly connected to
the each Tx/Rx connector on the antenna. Failure to connect the cables to the
correct connector on the BDT will cause system damage.

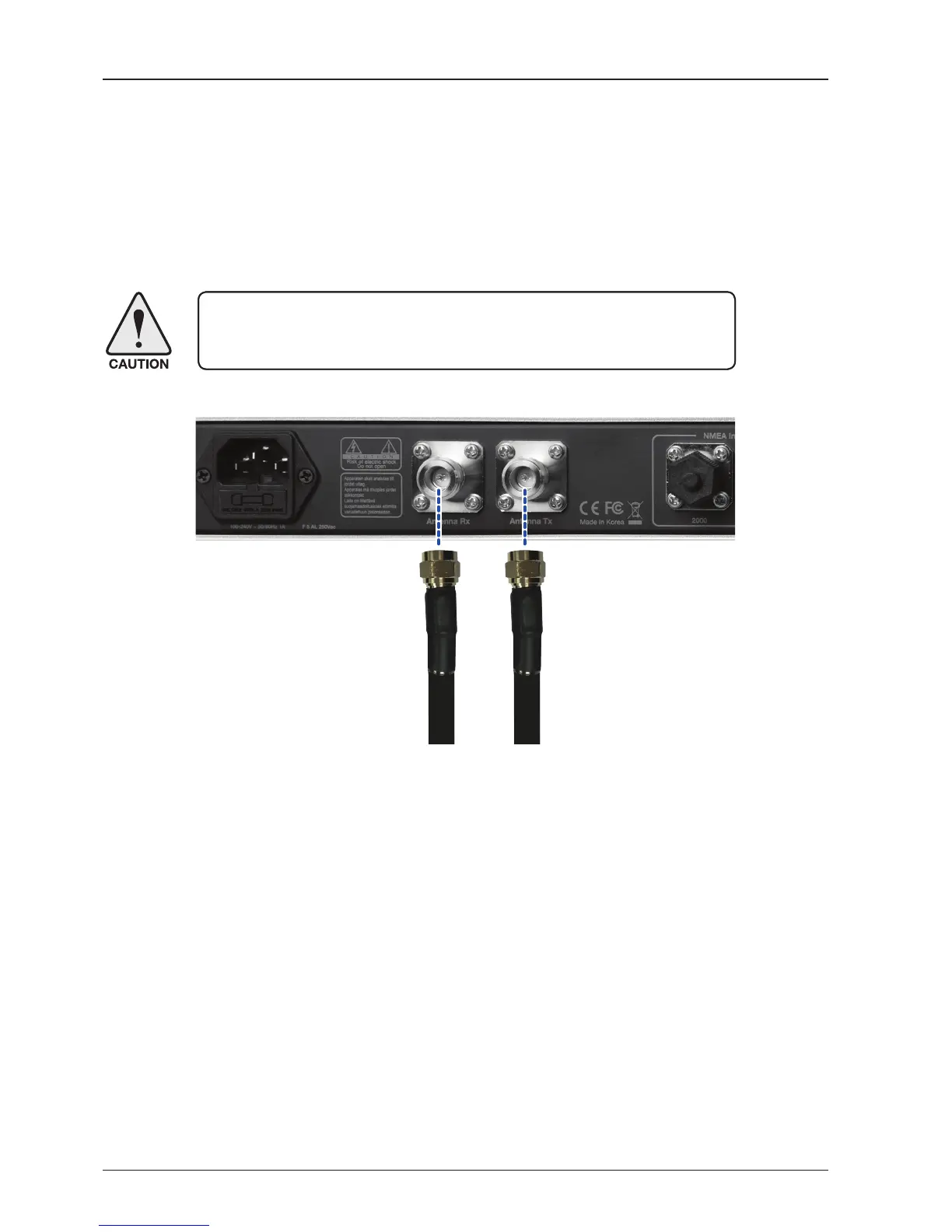

Connect the two(2) Antenna RF cables to the Antenna RF connectors on the rear of the BDT. Connect the
Antenna "Tx" Cable to the "Antenna Tx" connector and the Antenna "Rx" Cable to "Antenna Rx" connector as
shown in the gure below. Ensure all cables are rmly fastened to the connectors.
Antenna
"Tx" Cable
Antenna
"Rx" Cable
