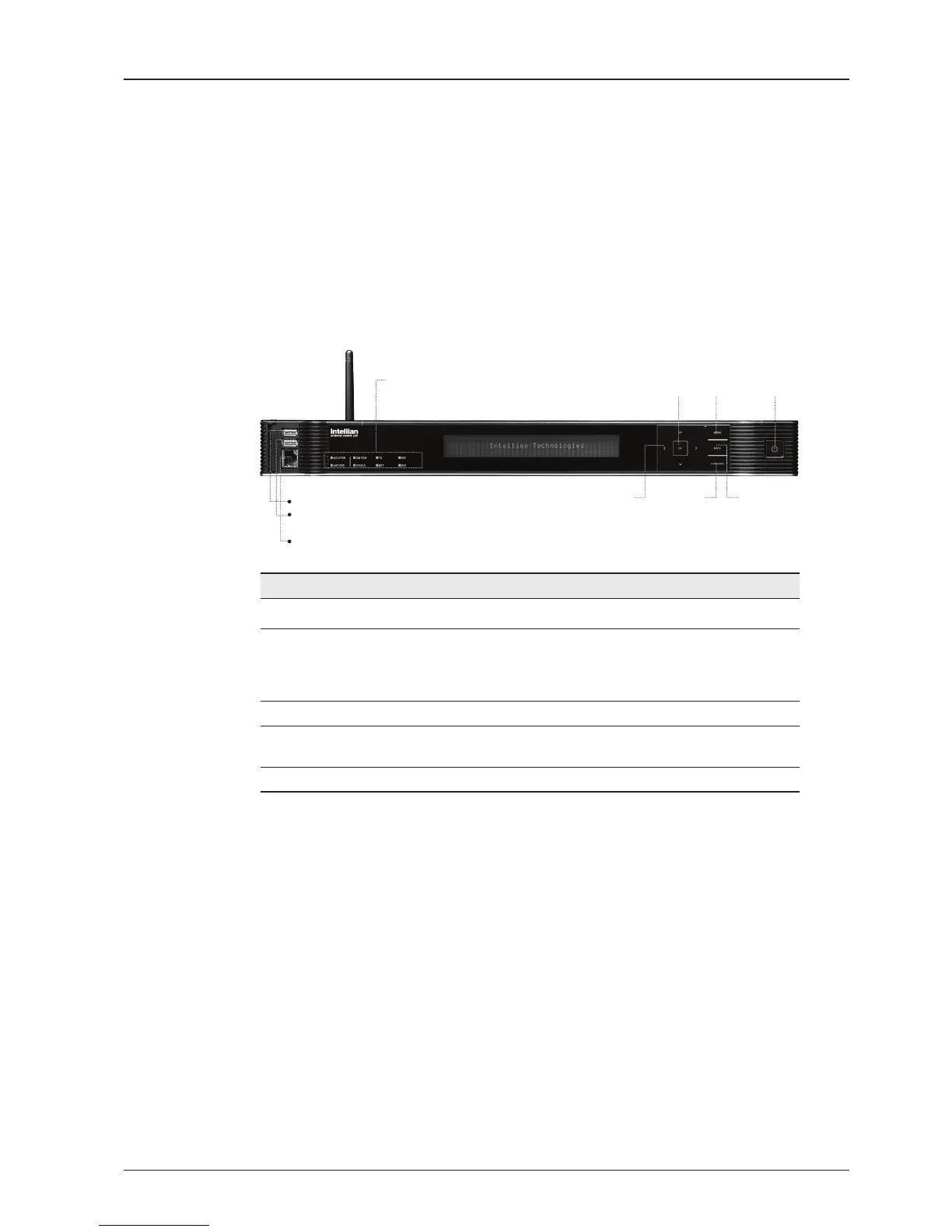

BDT front keys
Touch key functions
Touch key Function
MENU
Enter SETUP mode
BACK
In SETUP mode, returns to previous menu or option or saves the
adjusted settings.
In Normal mode, returns to the rst page of antenna current status.
FUNCTION
Saves the adjusted settings.
Arrow keys
Selects from the alternative options to increase or decrease the
selected character to a desired value.
OK
Enter next step / menu
PC : PC Cable (USB)
DN : Firmware upgrade or Log data
download (USB)
Management port
Arrow
keys
LED Indicators:
BDT POW, ANT ERR, CM POW, STATUS, TX, NET,
RX1, RX2
Function
OK
BACK
Power
switch
MENU
This section of the handbook describes how to setup your system after installing the BDT.
