3. Satellite

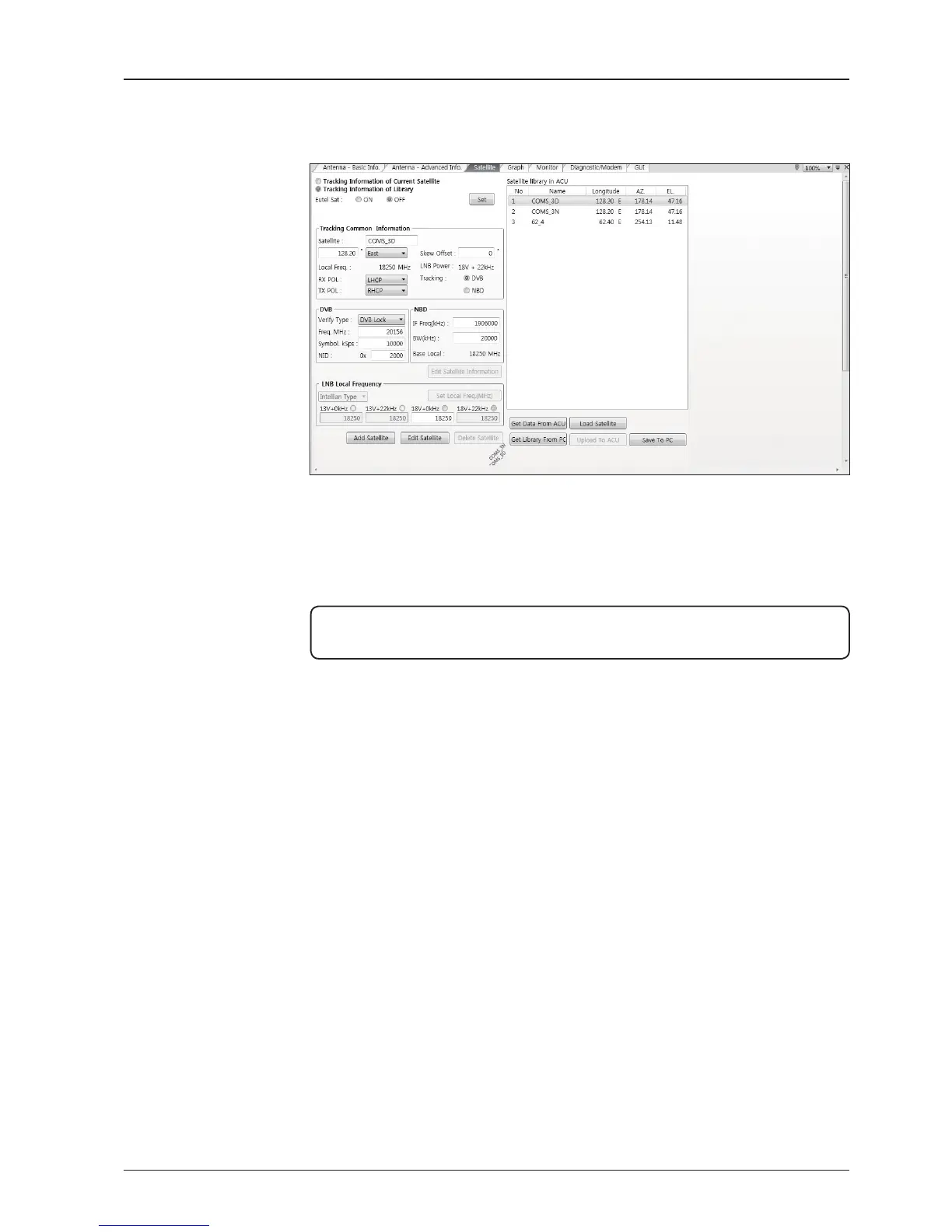

This view provides information on the Satellite’s Information, Tracking Common
Information, DVB and NBD Tracking Transponder, LNB Local Frequency, and Satellite
Library. This view shows a graphic UI of the current satellite that the
antenna is pointing at and the satellites that are located at a 180° arc on the horizon
with reference to the current position.
NOTE: Based on the satellite EIRP footprint and the size of the antenna, you may not
be able to track all the satellites visible in 180° arc.
- Tracking Information of Current Satellite: displays the current satellite’s name,
longitude position, and satellite skew of the satellite in the library.
- Tracking Common Information: displays the current LNB local oscillator frequency
that is in use and the corresponding voltage supplied. Selects the
tracking mode (DVB / NBD) to be used and sets polarization (Horizontal / Vertical) for
the RX pol and the TX pol.
