6. Diagnostic / Modem

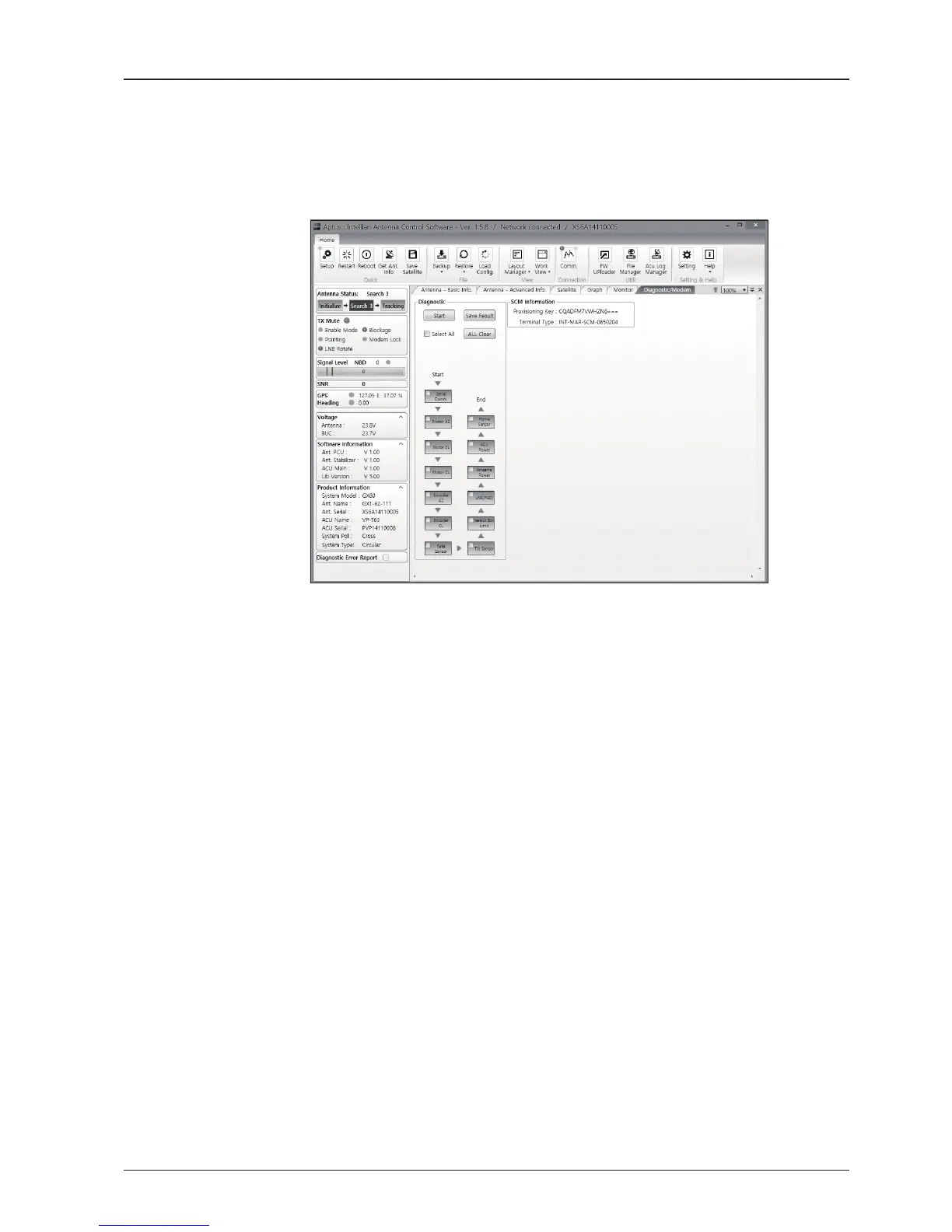

This view provides Antenna Diagnostic Testing and also provides functions to set up
the interface between the BDT and the Intellian VSAT Mediator or the satellite modem.
- Diagnostic : select to run a full diagnostic test or single diagnostic test.
"Green" indicator is displayed for the test under progress.
"Blue" indicates the test result as Pass while "Red" indicates the result as Fail.
"Yellow" indicates the test has been skipped.
· Serial Comm.: tests the data communication between the antenna
and the BDT.
· Motor AZ: tests the azimuth motor.
· Motor EL: tests the elevation motor.
· Motor CL: tests the cross-level motor.
· Encoder AZ: tests the azimuth encoder.
· Encoder CL: tests the cross-level encoder.
· Rate sensor: tests the rate sensor.
· Tilt Sensor: tests the tilt sensor.
· Home sensor: tests the home sensor.
· BDT power: tests the BDT power to see whether or not it is
within the nominal operating range.
· Antenna power: tests the antenna power to see whether or not it
is within the nominal operating range.
· LNB/ NBD: tests the LNB and NBD (narrow band detector).
· Sensor Box Limit: tests the sensor box motor .
- SCM Information: displays the modem information.
