Intellian GX60 User Manual

29
Installing Antenna

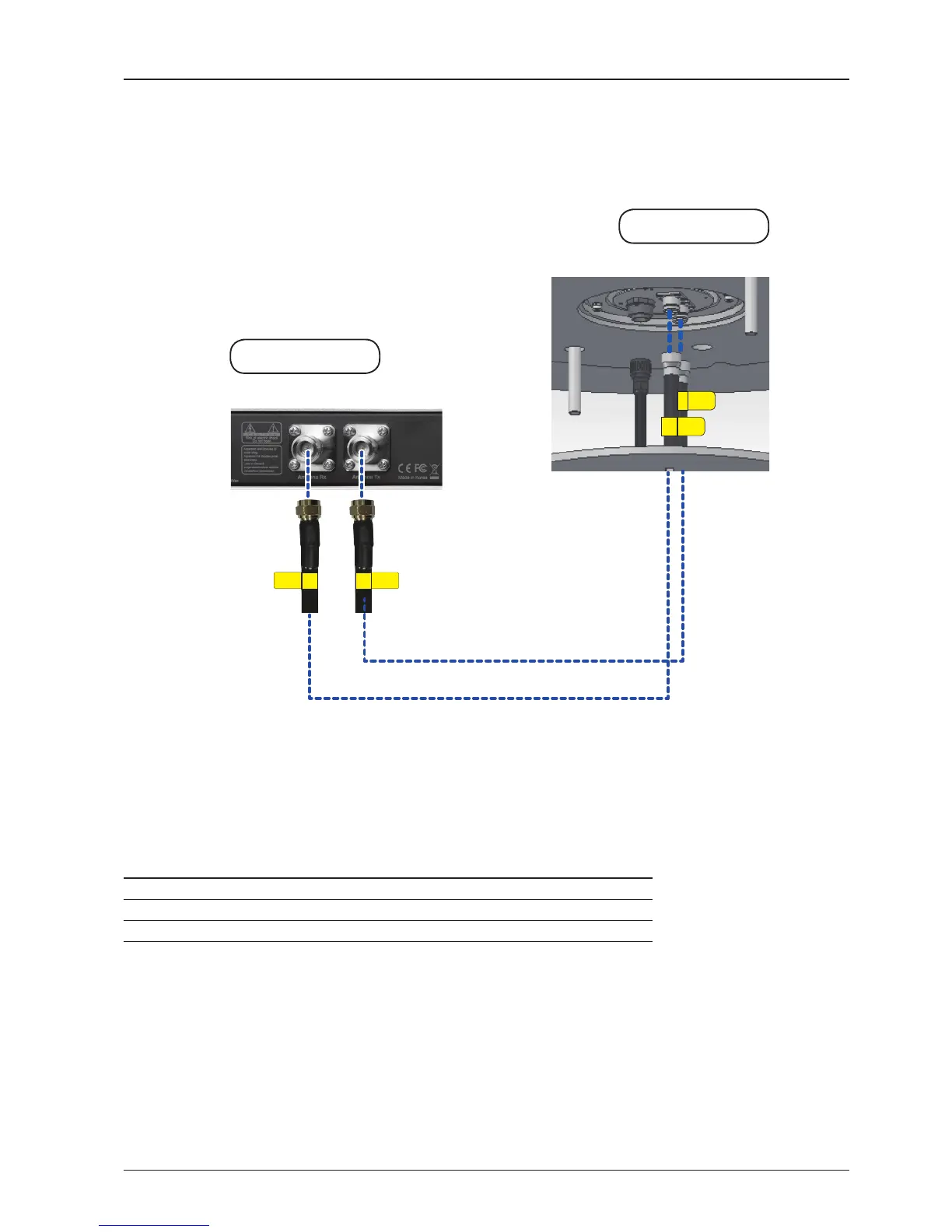

Labeling RF Cables
Once the RF cables are connected to the rear BDT, label Tx or Rx stickers for easy identication.
Rx
Tx
Rx
Tx
Antenna
"Tx" Cable
Antenna
"Rx" Cable
Cable Connectors on Rear BDT
Above Deck Unit
Below Deck Unit
Cable Connectors on Radome
Cable Length Cable Cross Sectional Area AWG (American Wire Gauge) Size
Up to 100m 2.5mm
2
13
Up to 200m 4mm
2
11
Power Cable (Customer Supplied)
Intellian GX60 has been designed to work on a vessel’s power supply rated at 100-240V AC. Intellian recommends the
following size of the input power cable for standard system installations.
• After connection, seal the cable gland and tie the power cable securely in place.
• The antenna power is supplied from the power switch box equipped with the circuit breakers, and the power switch box should
be installed near the antenna.
