GX60 – Marine Satellite Communication System
24
247.5mm (9.74")
247.5mm (9.74")
Ø445mm (17.51")
Ø160mm (6.29")
Ø200mm (7.87")
4xØ13mm (0.51")
Holes
BOW
NOTE: The hole(Ø160mm (6.29") in the support pedestal is mandatory for installing the
antenna.

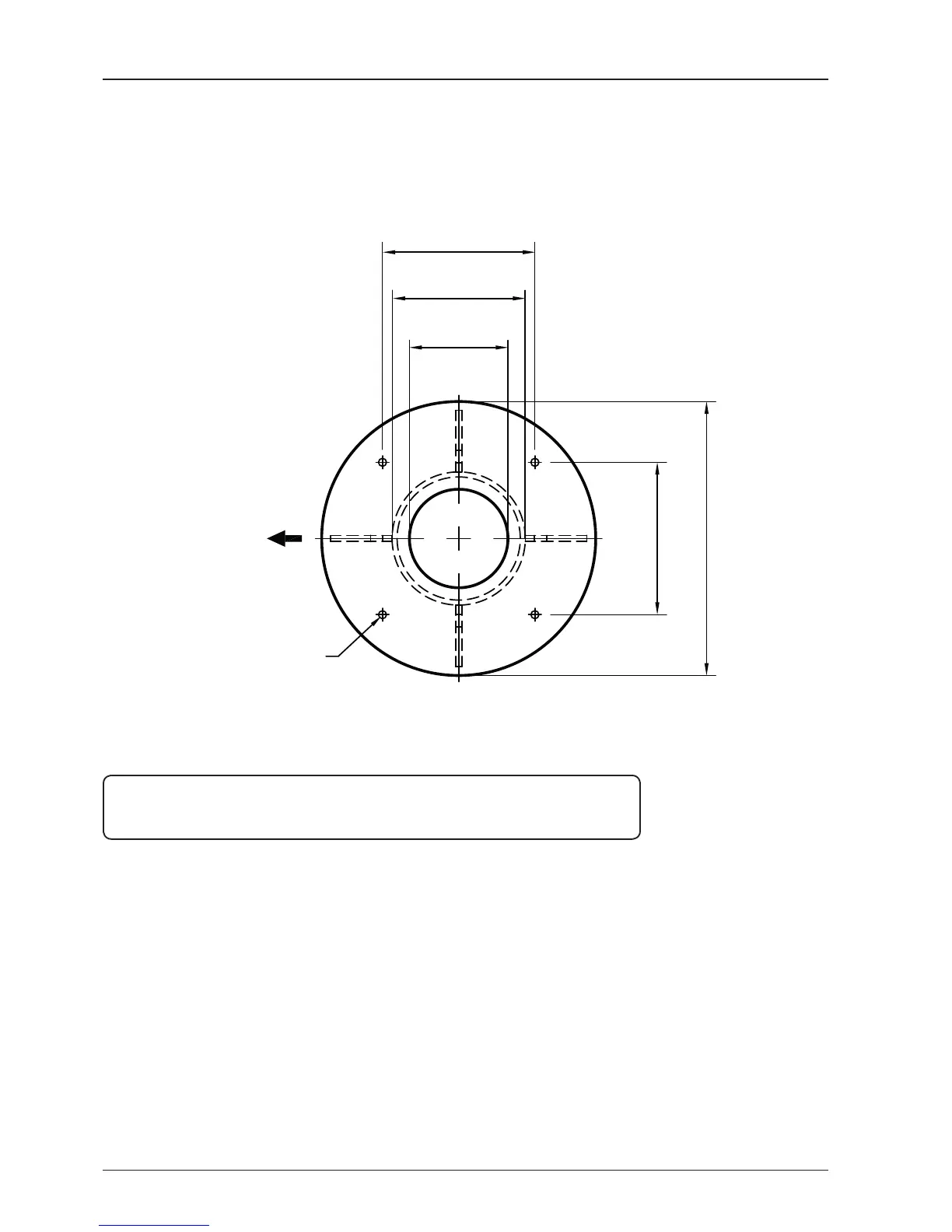

Antenna Mounting Hole Pattern
