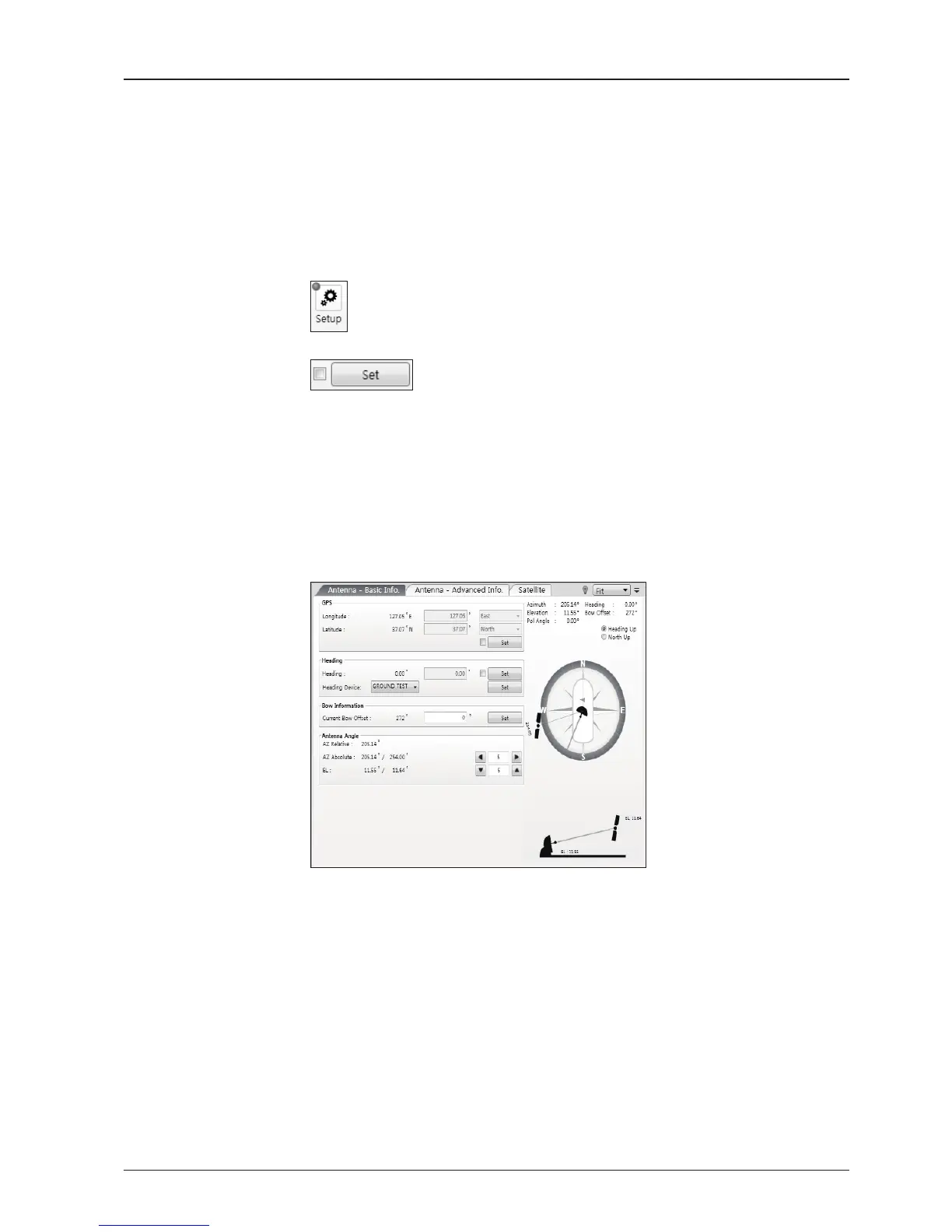

How to modify the settings on Work View:
1. Enter the Setup mode by clicking Setup icon.
2. Tick the checkbox next to the “Set” button to modify the settings.
3. Enter the desired value then press the Set button to save the settings.
1. Antenna – Basic Info.
This view tab provides information on the Antenna’s Current GPS location, Heading
Device, Bow Information, Skew Information, and the Antenna’s Angle. This view tab
uses the Antenna’s AZ and EL information as well as the Ship’s Heading information in
order to provide a dynamic graphic user interface (UI).
Work View Tabs
Aptus
®
provides seven Work View Tabs (Satellite View, Antenna Basic View,
Antenna Advanced View, Monitor View, Graph View, Diagnostic/Modem and GUI to manage the Antenna and the
Satellite conguration.
- GPS: displays and sets current antenna’s GPS.
- Heading: displays and sets current ship’s heading information.
· Heading Device: None / NMEA/ NMEA 2000/Ground Test.
The baud rate (4800/ 9600/ 19200/ 38400) must be set if NMEA is selected.
- Bow Information: displays and sets current antenna’s bow.
- Antenna Angle: displays and sets current antenna’s absolute and relative AZ
(azimuth) position, EL (elevation) position and LNB Pol angle. You can move antenna
azimuth and elevation position and LNB Pol angle by using the arrows or inputting a
value to nd the desired satellite manually.
To Next Page
