74

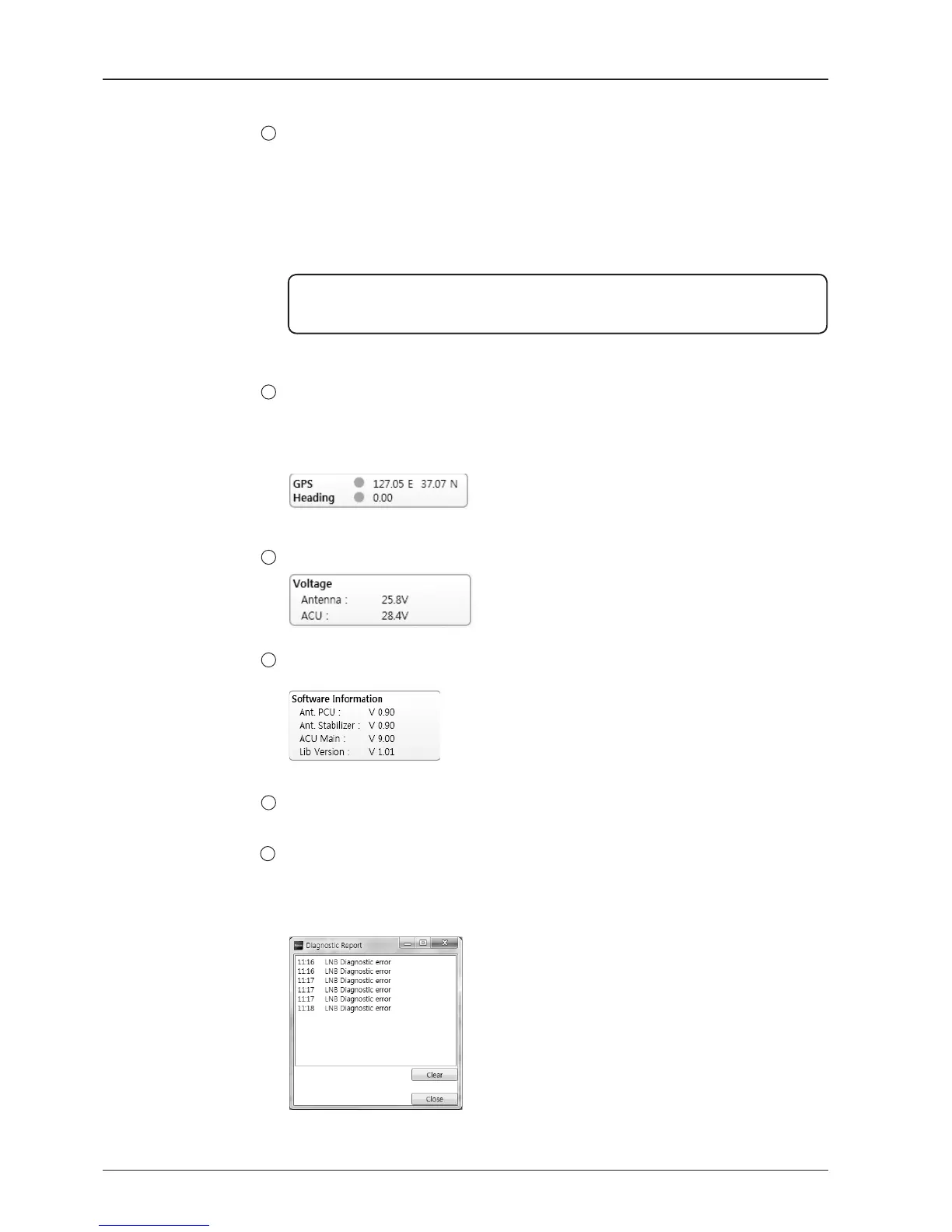

Diagnostic Error Report
The square button next to the Diagnostic Error Report turns red when the system
receives an error. Click the button to see a Diagnostic Report.
8
Signal Level
Shows “DVB” when DVB mode of tracking signal is in use and “NBD” when NBD
mode of tracking signal is in use. The “Red” line indicates the signal “Detect Level
Threshold” and the “Orange” line indicates the signal “Tracking Level Threshold”. If the
signal level is higher than the tracking level threshold, the signal level bar will display
“Blue” color. If the signal level is lower than the tracking level threshold, the signal level
bar will display “Orange” color and the antenna will stay in searching mode.
NOTE: If the signal level is not higher than the tracking threshold, decrease the detect
and tracking level.
GPS and Heading
Displays the current GPS location from the Antenna and Ship’s heading information.
The status light ashes green if the system receives a correct input of the GPS and
Ship’s heading.
Voltage: Displays the antenna and the BDT voltage information.
Software Information: Displays the antenna and the BDT rmware versions, and the
library version.
Product Information: Displays the antenna and BDT serial numbers, antenna model
and BDT model.
3
4
5
6
7
