Intellian GX60 User Manual

GX60 – Marine Satellite Communication System
42

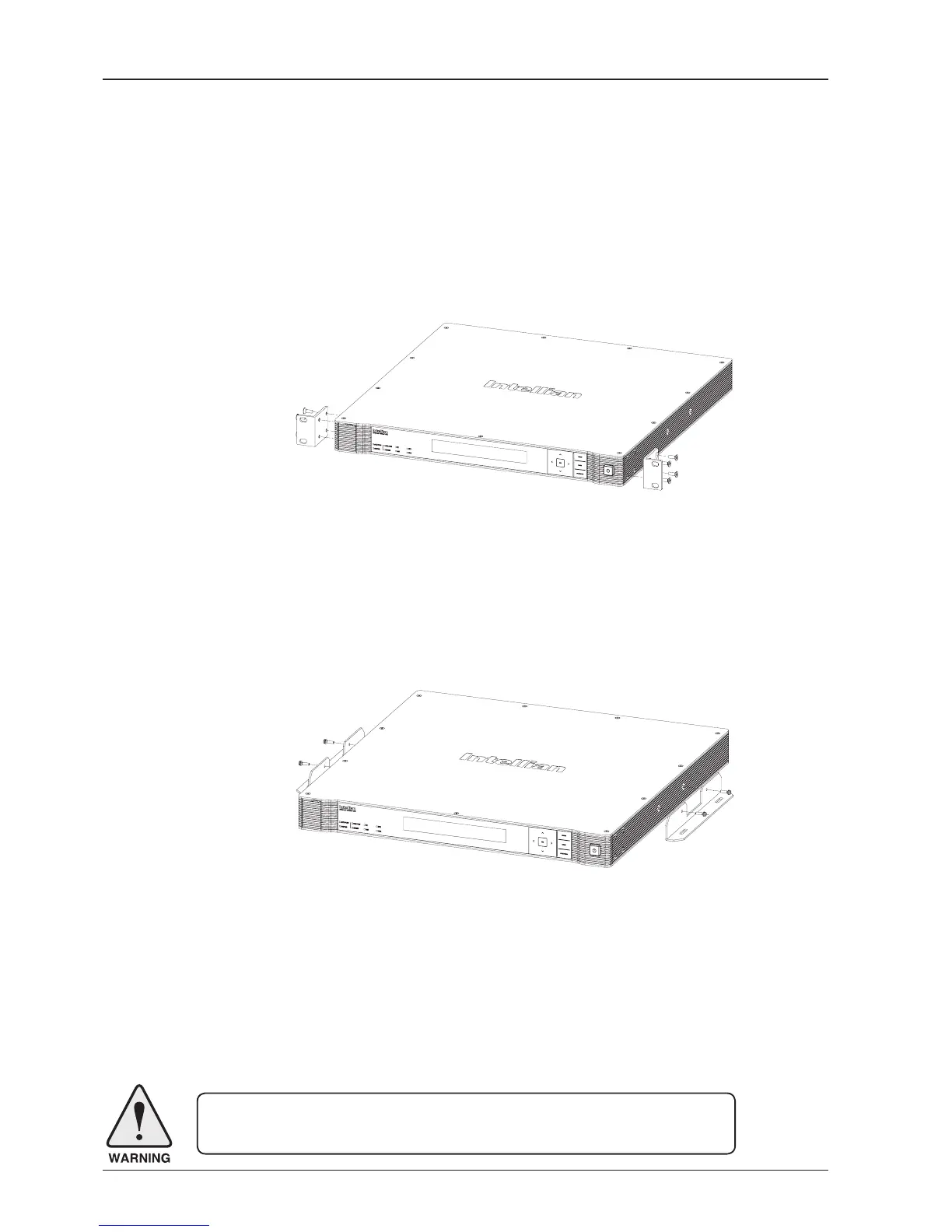

Mounting BDT
Intellian supplies two types of mounting methods 19” Rack Mount Type and Table Mount Type to mount the BDT.
19” Rack Mount Type
- The BDT should be installed using the two supplied Rack Mounting Brackets which allow for a side 19” rack
mounting conguration.
- Using the Flat Head Screw supplied, attach the mounting brackets to the sides of the BDT.
- Place the BDT on the 19” Rack.
- Connect the cables to the rear of the BDT.
Table Mount Type
- The BDT should be installed using the two supplied Table Mounting Brackets which allow for a top or bottom
mounting conguration.
- Using the Sems Bolt supplied, attach the mounting brackets to the sides of the BDT.
- Place the BDT in the location where it is going to be installed.
- Using a pencil to mark the 4 hole positions (2 each side), and use the appropriate drill bit to screw down the
brackets.
- Connect the cables to the rear of the BDT.
WARNING: Ensure that the cables connected to the BDT are long enough to prevent
damage when the BDT is pulled out from the rack.
19" Rack mount type
Table mount type
Installing BDT
