GX60 – Marine Satellite Communication System
50

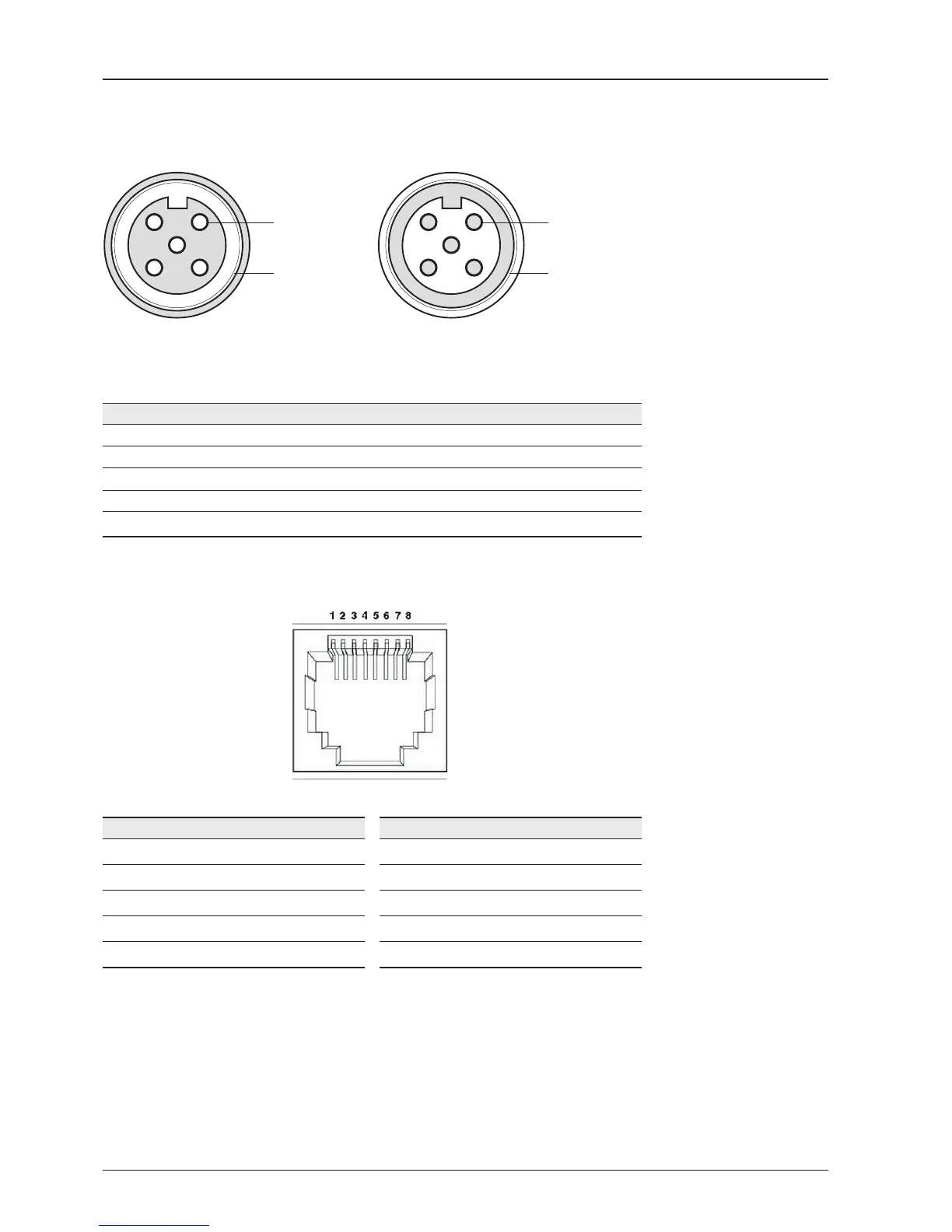

• NMEA 2000
• LAN
5
4
3
2
1
Pins
Connector threads
5
3
4
1
2
Sockets
Connector threads
BDT NMEA 2000 port :
male
BDT LAN port
Supplied component:
female
Pin Signal
1 Shield
2
NET-S, (Power supply positive, +V)
3
NET-C, (Power supply common, -V)
4 NET-H, (CAN-H)
5 NET-L, (CAN-L)
Pin Signal Pin Signal
1 TX+ 6 RX-
2 TX- 7 NC
3 RX+ 8 NC
4 NC
5 NC
