Appendix 4 Interfaces
RS-422 is a point-to-point interface for connection between one
printer and one host computer over a distance of up to 1,200
metres (4,000 ft.) by use of a four-wire cable. The transmission
is full duplex, that is, reception and transmission can take place
simultaneously.
RS-422 requires an additional circuit and a number of straps to
be fi tted on the CPU board:

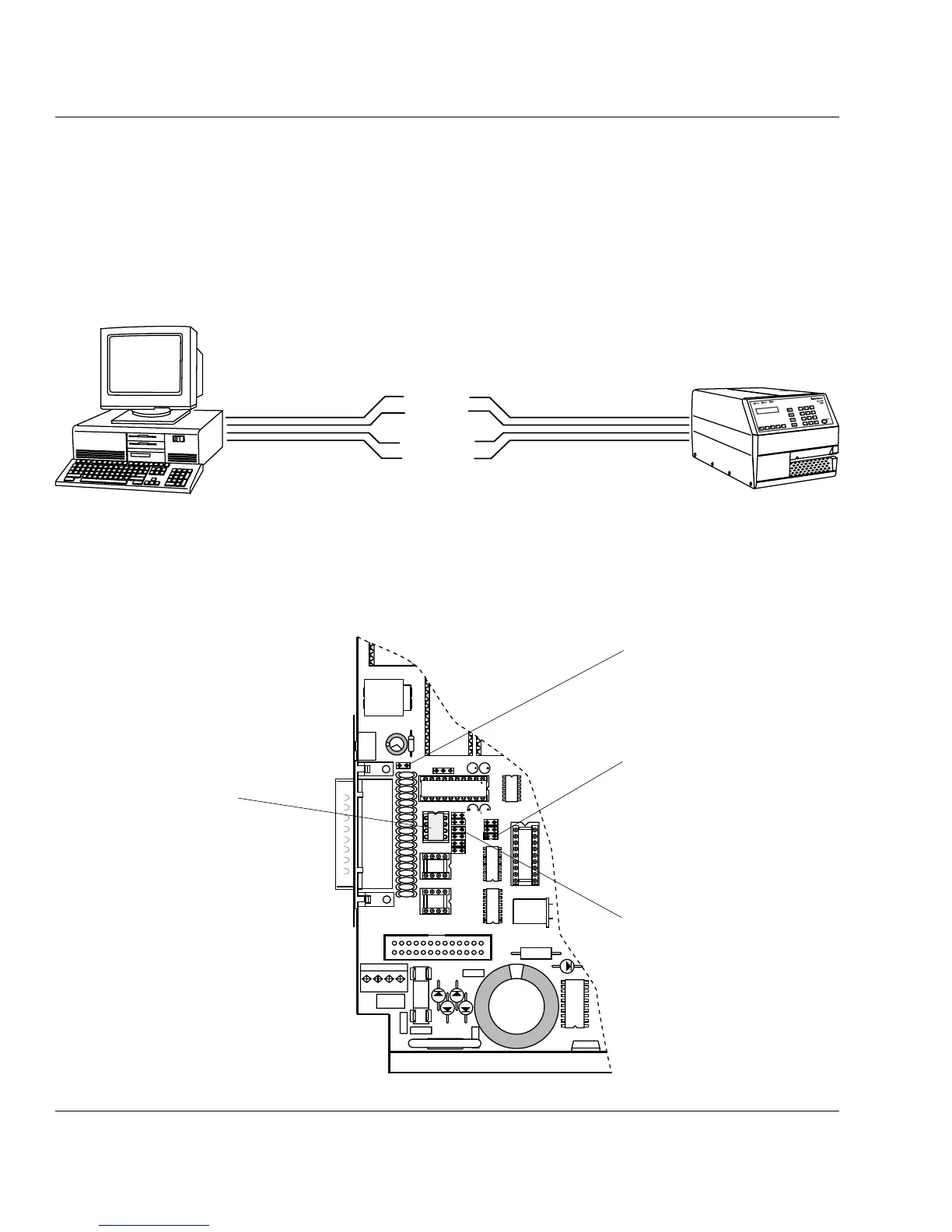

RS-422 connection between host computer and printer.
Standard Interface "uart1:", cont.
RS-422
+ RS422 IN
- RS422 IN
+ RS422 OUT
- RS422 OUT
232
CL
422
"UART1:"
P202
IC-207
P203
P208
P206
P209
P207
P204
P205
+-
P-203 (external +5 VDC)
P-202 (interface select)
P-204 to P-209 (comm. straps)
IC-207 (RS-422 circuit)
